Products specifications

Category Switches>Tactile Switches
Mfr Panasonic Electronic Components
Series EVQQ2
Package Tape & Reel
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.02A @ 15VDC
Actuator Type Standard
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 2.50mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 6.50mm x 6.00mm
Illumination Non-Illuminated
Operating Force 100gf
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 0.20mm
Mechanical Life 1,000,000 Cycles
Base Product Number EVQ-Q2
Other Names P12970SCT,P12970STR,EVQQ2F02W,P12970SDKR
Standard Package 2,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 1232945-EVQ-Q2F02W
Ultra Librarian 3D Model Ultra Librarian EVQ-Q2F02W CAD Model

Description

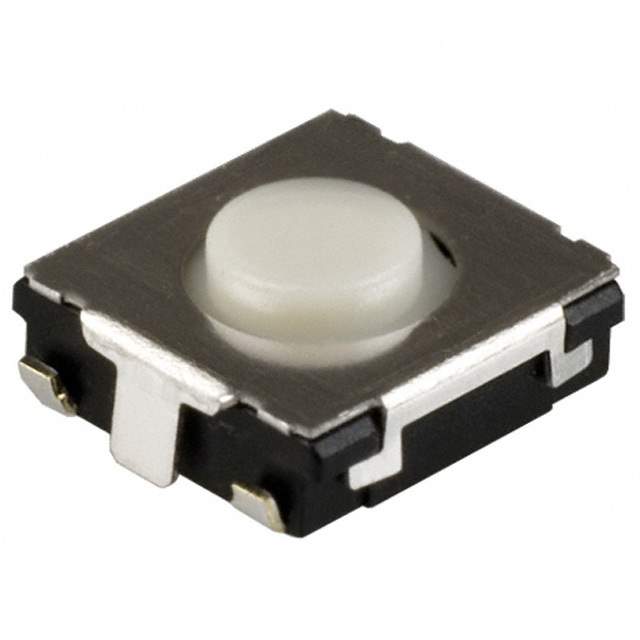

The Panasonic Electronic Components EVQ-Q2F02W is a SPST-NO tactile switch that functions as an off-mom switch.

  • Switch Travel: 0.20mm
  • Operating Force: 100gf
  • Contact Rating: 0.02A @ 15VDC
  • Mechanical Life: 1,000,000 cycles
  • Mounting: surface mount device (SMD)
  • Actuator Orientation: top actuated
  • Outline: 6.50mm x 6.00mm
  • Standard Package: 2,000
  • Illumination: non-illuminated
  • Actuator Type: standard
