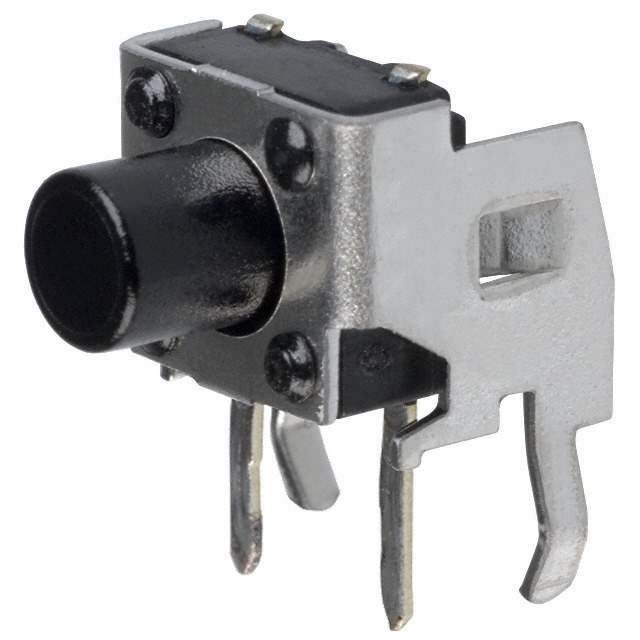

EVQ-PF006K Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Switches
Manufacturer Panasonic Electronic Components
Packaging Bulk
Part Status Last Time Buy
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating at Voltage 0.02A at 15VDC
Actuator Type Standard
Mounting Style Through Hole, Right Angle
Actuator Length, Right Angle 5.85mm
Actuator Orientation Side Actuated
Termination Style PC Pin
Outline 7.50mm x 7.10mm
Illumination Non-Illuminated
Operating Force 100gf
Temperature Range - Operating -20°C ~ 70°C
Switch Travel 0.25mm
Mechanical Life 100,000 Cycles
Manufacturer Pack Quantity 500
MSL Level 1 (Unlimited)
Win Source Part Number 723477-EVQ-PF006K
Popularity Low
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EVQ-PF006K CAD Model

Description

The EVQ-PF006K from Panasonic Electronic Components is a through-hole, right angle switch.

  • Termination Style: PC Pin
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Type: Standard
  • Switch Travel: 0.25mm
  • Actuator Orientation: Side actuated
  • Mechanical Life: 100,000 cycles
  • Operating Force: 100gf
  • Illumination: Non-illuminated
  • Outline: 7.50mm x 7.10mm
  • Temperature Range: -20°C ~ 70°C
  • Contact Rating: 0.02A @ 15VDC
  • Manufacturer Pack Quantity: 500
  • MSL Level: 1 (Unlimited)
