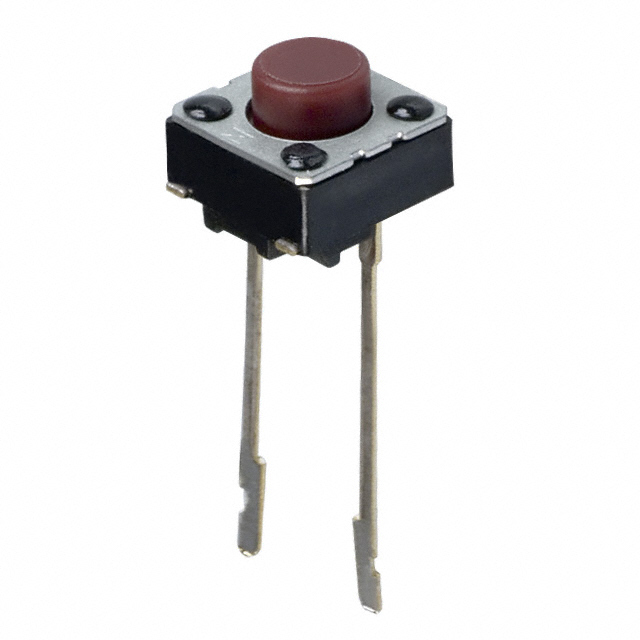

Same model may have multiple batches, images only for reference.
EVQ-PE504K Panasonic – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

EVQ-PE504K

Part No EVQ-PE504K
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Through Hole
Actuator Height off PCB, Vertical 4.30mm
Actuator Orientation Top Actuated
Termination Style PC Pin
Outline 6.00mm x 3.50mm
Illumination Non-Illuminated
Operating Force 160gf
Temperature Range - Operating -30°C ~ 85°C
Package Bulk
Supply and Demand Status Shortage
Win Source Part Number 1563655-EVQ-PE504K
Ultra Librarian 3D Model Ultra Librarian EVQ-PE504K CAD Model
