Same model may have multiple batches, images only for reference.

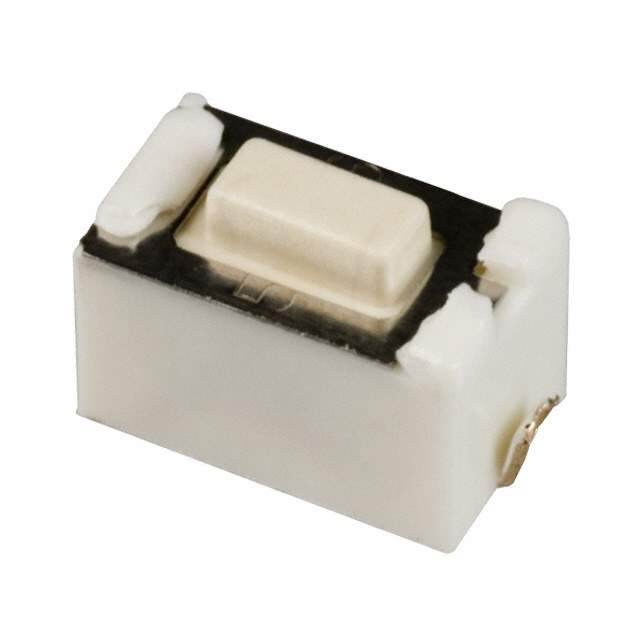

EVQ-PJX04M Real Image
Same model may have multiple batches, images only for reference.

EVQ-PJX04M

Part No EVQ-PJX04M
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V
Datasheet
EVQ-PJX04M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Panasonic Electronic Components
Packaging Cut Reel
Status Obsolete(EOL)
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting SMD (SMT)
Actuator Height off PCB, Vertical 4.30mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 6.00mm x 3.50mm
Illumination Non-Illuminated
Operating Force 160gf
Features Tactile Feedback
Switch Travel 0.25mm
Mechanical Life 50,000 Cycles
Temperature Range - Operating -30°C to 85°C
Win Source Part Number 1010238-EVQ-PJX04M
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian EVQ-PJX04M CAD Model

Description

The Panasonic Electronic Components EVQ-PJX04M is a tactile feedback switch with a J lead termination style. Panasonic Electronic Components.

  • Termination Style: J Lead
  • Circuit: SPST-NO
  • Switch Function: Off-Mom
  • Actuator Height off PCB: 4.30mm
  • Packaging: Cut Reel
  • Switch Travel: 0.25mm
  • Operating Force: 160gf
  • Mechanical Life: 50,000 cycles
  • Category: Switches
