Manufacturer Panasonic
Win Source Part Number 1172958-EVQP4003M
Manufacturer Homepage www.panasonic.com/industrial/
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian EVQP4003M CAD Model

Description

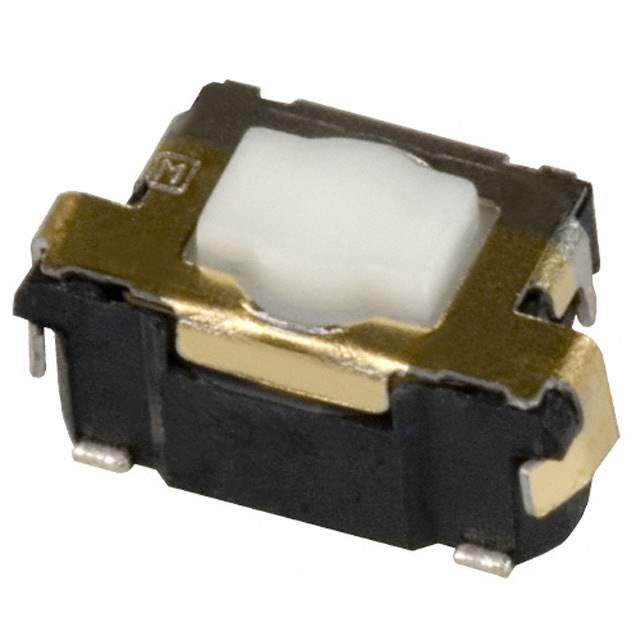

The EVQP4003M is a tactile switch manufactured by Panasonic. It's designed to provide a momentary electrical connection when pressed, offering tactile feedback to the user. These switches are commonly found in various electronic devices for input and control.

Applications

  • Remote controls: Used for channel selection, volume control, and menu navigation.
  • Consumer electronics: Found in audio players, video recorders, and other entertainment devices.
  • Mobile devices: Used in cell phones, smartphones, and tablets for various functions.
  • Industrial control panels: Employed in machinery controls, operator interfaces, and instrumentation.
  • Computer peripherals: Found in keyboards, mice, and other input devices.

Features

  • Tactile feedback: Provides a clear and distinct click or feel when the switch is activated.
  • Compact design: Allows for easy integration into space-constrained applications.
  • Long lifespan: Designed for repeated use and reliable operation over an extended period.
  • Surface mount technology (SMT): Facilitates automated assembly and soldering onto printed circuit boards.
  • RoHS compliant: Meets environmental standards for hazardous substance content.

Benefits

  • Improved user experience: Tactile feedback provides positive confirmation of switch activation.
  • Space-saving solution: Compact size enables integration into a wide range of applications.
  • Reliable performance: Long lifespan ensures consistent operation and reduces the need for replacements.
  • Simplified manufacturing: SMT design streamlines the assembly process.
  • Environmentally responsible: RoHS compliance minimizes environmental impact.

Specifications

While exact specifications vary depending on sourcing, typical values for EVQP4003M type tactile switches include:

  • Operating Force: Approximately 1.6 N (check datasheet for specific value).
  • Travel: Typically around 0.25 mm.
  • Contact Resistance: Usually less than 100 mΩ.
  • Operating Temperature Range: Typically -25°C to +70°C (check datasheet for specific range).
  • Life Cycle: Can range from 100,000 to 1,000,000 cycles, depending on the specific model and application.

The EVQP4003M tactile switch is a versatile and reliable component suitable for a wide range of electronic applications. Its tactile feedback, compact design, and long lifespan make it an excellent choice for designers seeking a high-quality switch.
