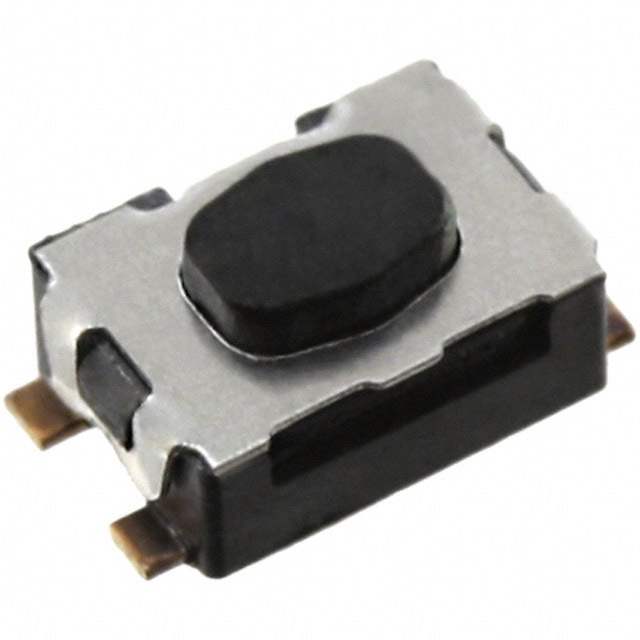

Same model may have multiple batches, images only for reference.

KMR231NGULCLFS

Name: KMR231NGULCLFS
Brand: C&K Components
SKU: 170114
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	KMR231NGULCLFS
Manufacturer	C&K Components
Catalog	Tactile Switches
Description	Switch Tactile N.O. SPST Button Gull Wing 0.05A 32VDC 1VA 150000Cycles 3N SMD Automotive T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	C&K Components
Operating Temp Range	-40C to 85C
Contact Plating	Silver
Current Rating (Max)	0.05(A)
Mounting Style	SMD/SMT
Body Orientation	Straight
Packaging	Tape and Reel
Type	Micro-Miniature
Contact Material	Silver
Voltage Rating (VDC)	32(V)
Operating Force	3(N)
Actuator Style	Button
Pole Throw Configuration	SPST
Switch Function Configuration	N.O.
Illumination Type	Not Required
Product Length (mm)	4.6(mm)
Product Depth (mm)	2.8(mm)
Product Height (mm)	1.9(mm)
Mechanical Life	150000
Ground Terminal	No
Terminal Type	Gull Wing
Actuator Length (mm)	0.5(mm)
Win Source Part Number	040943-KMR231NGULCLFS
Family Name	KMR 2
ECCN	EAR99
Country of Origin	China
Estimated EOL Date	2026
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Balance
Ultra Librarian 3D Model	Ultra Librarian KMR231NGULCLFS CAD Model

Description

The KMR231NGULCLFS from C&K is a micro-miniature switch with a straight body orientation.

Mounting Type: SMD/SMT
Contact Material and Plating: Silver
Voltage Rating: 32VDC
Current Rating: 0.05(A)
Height: 1.9(mm)
Length: 4.6(mm)
Depth: 2.8(mm)
Operating Force: 3(N)
Mechanical Life: 150,000 cycles
Circuit: SPST
Actuator Style: Button
Pole Throw Configuration: SPST
Switch Function Configuration: N.O.
Illumination Type: Not required
Ground Terminal: No
Actuator Length: 0.5(mm)
Estimated EOL date: 2026
