Same model may have multiple batches, images only for reference.

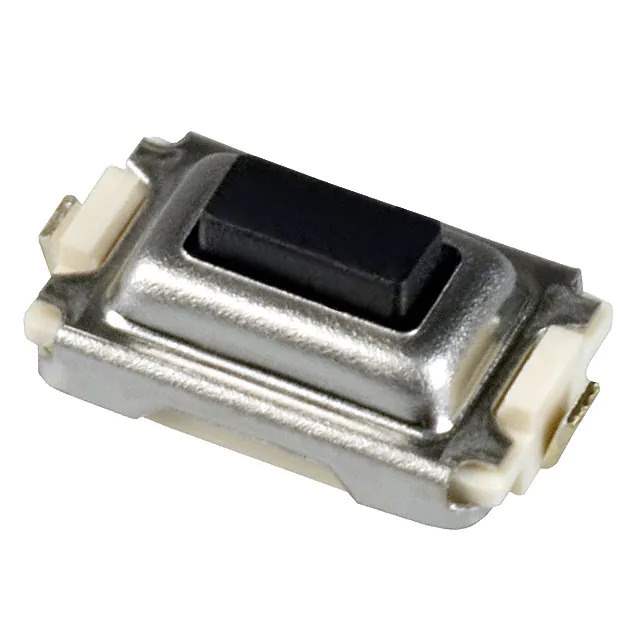

EVQ-PPBA25 Real Image
Same model may have multiple batches, images only for reference.

EVQ-PPBA25

Part No EVQ-PPBA25
Manufacturer Panasonic
Catalog Tactile Switches
Description SWITCH TACTILE SPST-NO 0.05A 12V / Tactile Switch SPST-NO Top Actuated Surface Mount
Datasheet
EVQ-PPBA25 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Switches - Tactile Switches
Mfr Panasonic
Series EVQPP
Package Tape & Reel
Product Status Obsolete
Circuit SPST-NO
Switch Function Off-Mom
Contact Rating @ Voltage 0.05A @ 12VDC
Actuator Type Standard
Mounting Type Surface Mount
Actuator Height off PCB, Vertical 2.50mm
Actuator Orientation Top Actuated
Termination Style J Lead
Outline 6.00mm x 3.70mm
Illumination Non-Illuminated
Operating Force 160gf
Ingress Protection Dust Proof
Temperature Range - Operating -40°C ~ 85°C
Switch Travel 0.25mm
Mechanical Life 50,000 Cycles
Base Product Number EVQ-PP
Standard Package 4,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.50.9031
Win Source Part Number 871302-EVQ-PPBA25
Ultra Librarian 3D Model Ultra Librarian EVQ-PPBA25 CAD Model

Description

The EVQPP series tactile switch is a high-quality component designed for various electronic applications.

  • Termination Style: J lead
  • Ingress Protection: Dust-proof
  • Circuit Configuration: SPST-NO
  • Switch Function: Off-Mom
  • Switch Travel: 0.25mm
  • Operating Force: 160gf
  • Actuator Orientation: Top Actuated
  • Outline Dimensions: 6.00mm x 3.70mm
  • Contact Rating: 0.05A @ 12VDC
  • Mechanical Life: 50,000 cycles
  • Mounting: Surface Mount
  • Operating Temperature: -40°C to 85°C
  • Manufacturer: Panasonic
