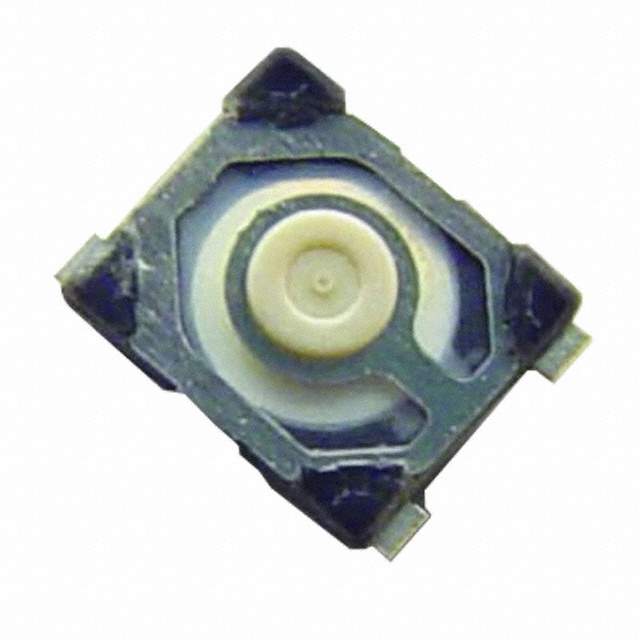

KMT221GHFLFS

Name: KMT221GHFLFS
Brand: C&K Components
SKU: 976082
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	KMT221GHFLFS
Manufacturer	C&K Components
Catalog	Tactile Switches
Description	Switch Tactile N.O. SPST Round Button Gull Wing 0.05A 32VDC 0.5VA 150000Cycle 1.6N SMD T/R
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Actuator Length	190 µm
Mounting	SMD (SMT)
Termination	SMD/SMT
Contact Current Rating	50 mA
Contact Material	Silver
Contact Plating	Silver
Current Rating	50 mA
Depth	3.6 mm
Illumination Type	Non-Illuminated
Length	2.6 mm
Max Current Rating	50 mA
Maximum Operating Temperature	85 °C
Max Voltage Rating (DC)	32 V
Mechanical Life	150 kcycles
Min Operating Temperature	-40 °C
Mount	Surface Mount
Operating Force	1.6 N
Orientation	Straight
Power Rating	500 mW
Radiation Hardening	No
RoHS	Compliant
Schedule B	8536509065, 8536509065
Switch Function	Off-Mom
Switch Travel	130 µm
Termination	Gull Wing
Throw Configuration	SPST
Voltage Rating (DC)	32 V
Win Source Part Number	976082-KMT221GHFLFS
Categories	Tactile Switches
Manufacturer	C&K Components
Popularity	Low
Supply and Demand Status	Shortage
Ultra Librarian 3D Model	Ultra Librarian KMT221GHFLFS CAD Model

Alternative Products

Description

The KMT221GHFLFS tactile switch is a high-quality switch with an off-mom switch function and 1.6 N operating force.

Switch Function: Off-Mom
Operating Force: 1.6 N
Voltage Rating: 32 V DC
Current Rating: 50mA
Mechanical Life: 150 kcycles
Power Rating: 500 mW
Mounting Type: Surface Mount
Operating Temperature: -40°C to 85°C
RoHS Compliant: Yes
Radiation Hardening: No
Package Includes: 1 switch
