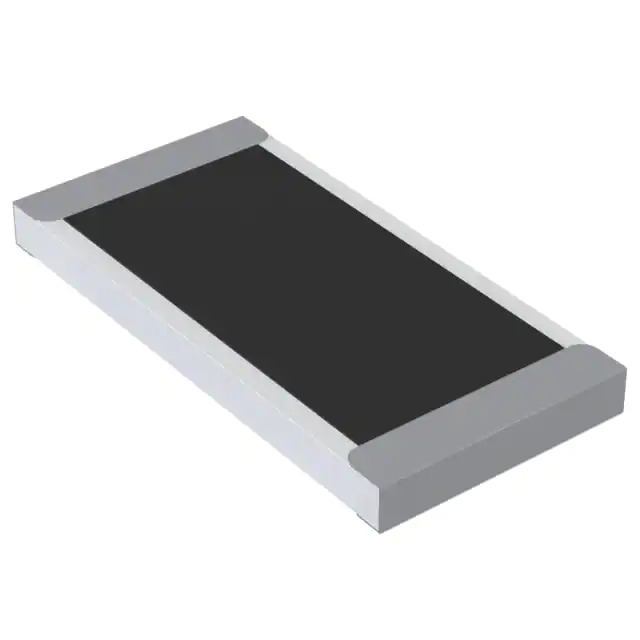

Products specifications

Category Resistors - Chip Resistor - Surface Mount
Mfr TE Connectivity Passive Product
Series RL73, CGS
Package Tape & Reel
Product Status Active
Resistance 330 mOhms
Tolerance ±1%
Power (Watts) 2W
Composition Thick Film
Features Current Sense
Temperature Coefficient ±200ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 2512 (6432 Metric)
Supplier Device Package 2512
Size / Dimension 0.250" L x 0.124" W (6.35mm x 3.15mm)
Height - Seated (Max) 0.033" (0.84mm)
Number of Terminations 2
Failure Rate -
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1375534-RLP73K3AR33FTDF
Ultra Librarian 3D Model Ultra Librarian RLP73K3AR33FTDF CAD Model

Description

The RL73, CGS series Chip Resistors are surface mount resistors suitable for various electronic applications, manufactured by TE Connectivity Passive Product.

  • Resistance: 330 mOhms
  • Power (Watts): 2W
  • Composition: Thick Film
  • Size / Dimension: 0.250" L x 0.124" W (6.35mm x 3.15mm)
  • Height - Seated (Max): 0.033" (0.84mm)
  • Tolerance: ±1%
  • Temperature Coefficient: ±200ppm/°C
  • Features: Current Sensing
