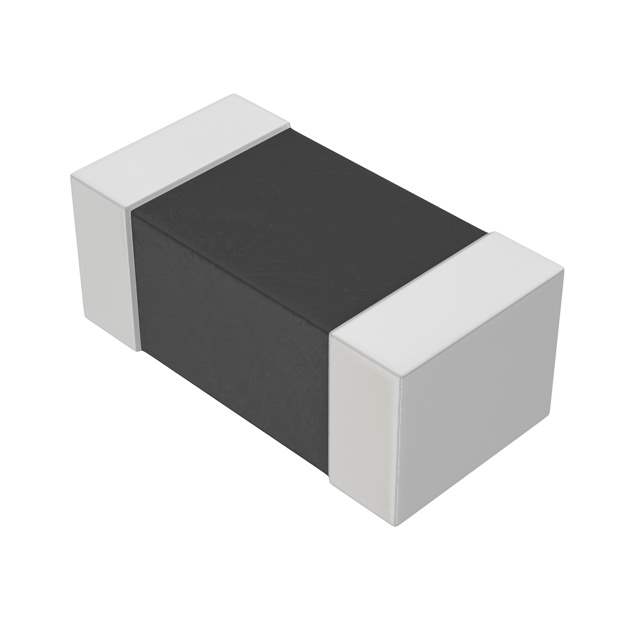

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Obsolete(EOL)
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating 2A
Voltage Rating - DC 24V
Response Time Fast
Mounting SMD (SMT)
Breaking Capacity @ Rated Voltage 35A
Approvals cUL, UL
Temperature Range - Operating -40°C to 100°C
Nominal Cold Resistance 0.053 Ohm
Win Source Part Number 097164-ERB-SD2R00U
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian ERB-SD2R00U CAD Model

Description

Product Overview

The ERB-SD2R00U is a sophisticated electronic component designed to deliver unmatched performance. Its adaptive design supports a variety of applications, making it a valuable asset in the electronics domain.

Features & Benefits

  • Enhanced Performance: Built to support high-performance operational needs.
  • Compact and Durable: Offers a balance of size and resilience.
  • Energy Efficient: Minimizes power consumption while maximizing output.

Applications

  • Home Automation Systems
  • Networking Devices
  • Instrumentations
  • Automotive and Aerospace Projects

Additional Information

The ERB-SD2R00U combines innovative technology and reliability, ensuring that it meets the expectations of modern electronic demands.
