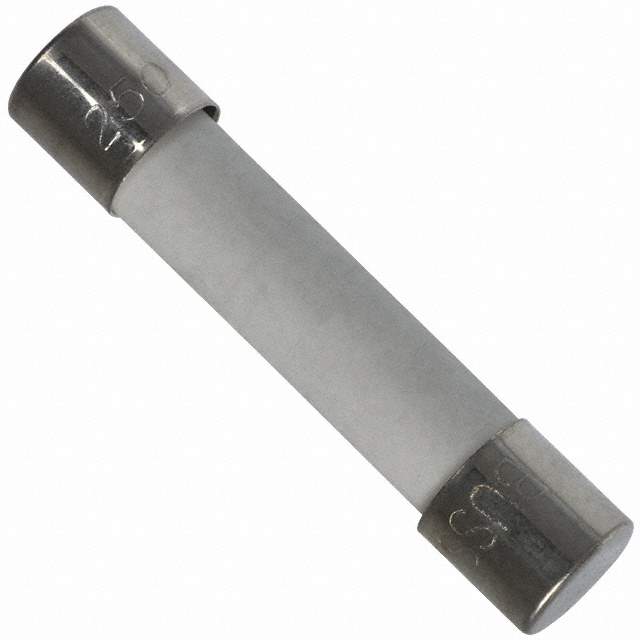

BK/ABC-25-R Real Image
Same model may have multiple batches, images only for reference.

BK/ABC-25-R

Part No BK/ABC-25-R
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE CERM 25A 250VAC 125VDC 3AB / Fuse Miniature Fast Acting 25A 250V Holder Cartridge 6.35 X 31.75mm Ceramic Carton CSA/UL
Datasheet
BK/ABC-25-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton
Series ABC
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating 25A
Voltage Rating - AC 250V
Voltage Rating - DC 125V
Response Time Fast
Package 3AB, 3AG, 1/4" x 1-1/4"
Mounting Holder
Breaking Capacity @ Rated Voltage 200A AC, 400A DC
Melting I2t 839.3
Approvals CSA, UL
Dimension 0.250" Dia x 1.250" L (6.35mm x 31.75mm)
Resistance 0.0028 Ohm
Win Source Part Number 770038-BK/ABC-25-R
Popularity Medium
Supply and Demand Status Limited
Family Name ABC
Introduction Date October 11, 2005
ECCN EAR99
Country of Origin China
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian BK/ABC-25-R CAD Model

Description

The Eaton ABC series fuses are used in various applications such as circuit protection.

  • Type: Cartridge, Ceramic
  • Voltage Rating: 250V AC, 125V DC
  • Current Rating: 25A
  • Response Time: Fast
  • Breaking Capacity @ Rated Voltage: 200A AC, 400A DC
  • Melting I2t: 839.3
  • Resistance: 0.0028 Ohm
  • Mounting: Holder
  • Package: 3AB, 3AG, 1/4" x 1-1/4"
  • Popularity: Moderately popular
  • Supply and Demand: Limited
