Same model may have multiple batches, images only for reference.

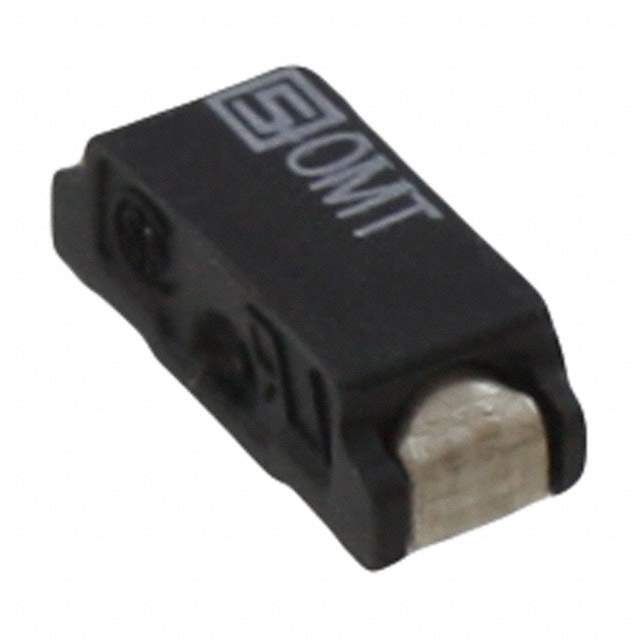

3404.0120.24 Real Image
Same model may have multiple batches, images only for reference.

3404.0120.24

Part No 3404.0120.24
Manufacturer Schurter Inc.
Catalog Fuses
Description Surface Mount Fuse, 7.4 x 3.1 mm, Time-Lag T, 125 VAC, 125 VDC | FUSE BRD MNT 4A 125VAC/VDC 2SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Schurter Inc.
Packaging Tape and Reel
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 4A
Voltage Rating - AC 125V
Voltage Rating - DC 125V
Response Time Slow Blow
Manufacturer Package 2-SMD, J-Lead
Mounting Style SMD
Breaking Capacity at Rated Voltage 100A
Melting I2t 12.3
Approvals cULus
Temperature Range - Operating -40°C ~ 85°C
Parts Dimension 0.291" L x 0.122" W x 0.102" H (7.40mm x 3.10mm x 2.60mm)
Manufacturer Pack Quantity 3,000
MSL Level Vendor Undefined
Win Source Part Number 1128252-3404.0120.24
Manufacturer Homepage www.schurterinc.com
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian 3404.0120.24 CAD Model

Description

The Schurter Inc. board mount fuse is a slow-blow type fuse with a voltage rating of 125V AC/DC.

  • Manufacturer: Schurter Inc.
  • Fuse Type: Slow-Blow
  • Voltage Rating: 125V AC/DC
  • Current Rating: 4A
  • Breaking Capacity: 100A @ rated voltage
  • Operating Temperature: -40°C to 85°C
  • Package: 2-SMD, J-Lead
  • Dimensions: 0.291" L x 0.122" W x 0.102" H (7.40mm x 3.10mm x 2.60mm)
  • Approval: cULus
