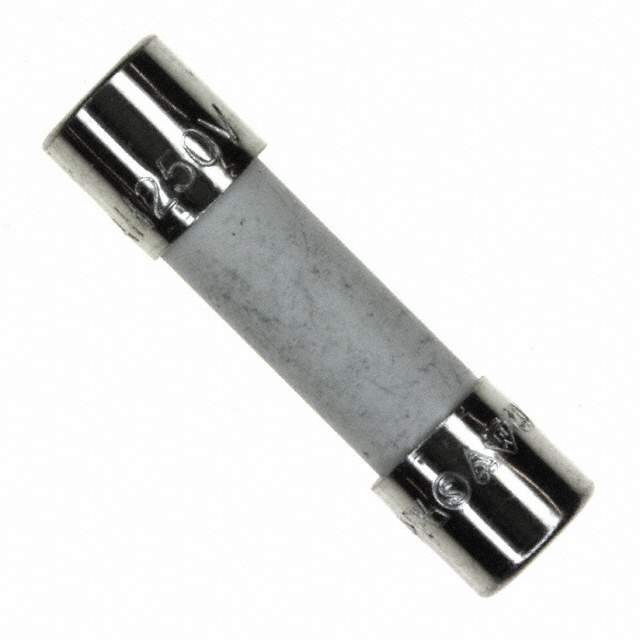

S505-4-R Real Image
Same model may have multiple batches, images only for reference.

S505-4-R

Part No S505-4-R
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE CERAMIC 4A 250VAC 5X20MM / 4 A 250 V AC DC Fuse Cartridge, Ceramic Holder 5mm x 20mm
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection>Fuses
Mfr Eaton - Electronics Division
Series S505
Package Bulk
Mounting Type Holder
Fuse Type Cartridge, Ceramic
Current Rating (Amps) 4 A
Voltage Rating - AC 250 V
Response Time Slow Blow
Package / Case 5mm x 20mm
Breaking Capacity @ Rated Voltage 1.5kA
Melting I2t 38.45
Approval Agency BSI, CCC/CQC, CSA, cULus, IMQ, KC, PSE/JET, SEMKO, VDE
Dimension 0.205" Dia x 0.787" L (5.20mm x 20.00mm)
DC Cold Resistance 0.0185 Ohms
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.10.0040
Standard Package 5
Win Source Part Number 972260-S505-4-R
Ultra Librarian 3D Model Ultra Librarian S505-4-R CAD Model

Description

The Eaton - Electronics Division ceramic cartridge fuse with the part number 972260-S505-4-R is a slow-blow fuse with a voltage rating of 250V and a current rating of 4A.

  • Voltage Rating: 250V
  • Current Rating: 4A
  • Breaking Capacity: 1.5kA
  • Melting I2t: 38.45
  • Package: Bulk
  • Package/Case: 5mm x 20mm
  • Category: Circuit Protection > Fuses
  • ECCN: EAR99
  • Supply and Demand Status: Balanced
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8536.10.0040
  • Approval Agency: BSI, CCC/CQC, CSA, cULus, IMQ, KC, PSE/JET, SEMKO, VDE
