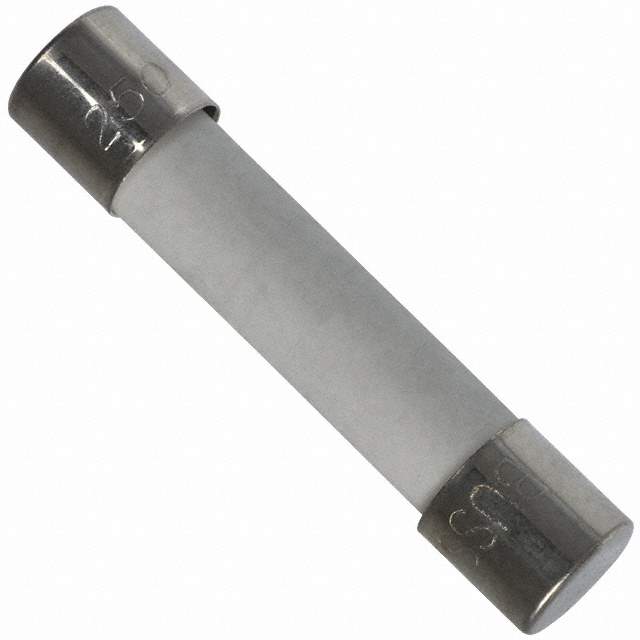

BK/ABC-30-R Real Image
Same model may have multiple batches, images only for reference.

BK/ABC-30-R

Part No BK/ABC-30-R
Manufacturer Eaton Bussmann
Catalog Fuses
Description FUSE CERM 30A 250VAC 125VDC 3AB / Fuse Miniature Fast Acting 30A 250V Holder Cartridge 6.4 X 31.7mm Ceramic Carton CSA/UL
Datasheet
BK/ABC-30-R Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Eaton
Series ABC
Packaging Bulk
Fuse Type Cartridge, Ceramic
Current Rating 30A
Voltage Rating - AC 250V
Voltage Rating - DC 125V
Response Time Fast
Package 3AB, 3AG, 1/4" x 1-1/4"
Mounting Holder
Breaking Capacity @ Rated Voltage 200A AC, 400A DC
Melting I2t 1429
Approvals CSA, UL
Dimension 0.250" Dia x 1.250" L (6.35mm x 31.75mm)
Resistance 0.002225 Ohm
Win Source Part Number 770039-BK/ABC-30-R
Popularity Medium
Supply and Demand Status Balance
Family Name ABC
Introduction Date October 11, 2005
ECCN EAR99
Country of Origin China
Estimated EOL Date 2023
Ultra Librarian 3D Model Ultra Librarian BK/ABC-30-R CAD Model

Description

The Eaton 770039-BK/ABC-30-R is a fast-acting ceramic cartridge fuse with a current rating of 30A and voltage rating of 250V AC and 125V DC.

  • Breaking Capacity @ Rated Voltage: 200A AC, 400A DC
  • Resistance: 0.002225 Ohm
  • Melting I2t: 1429
  • Approvals: CSA, UL
  • Application: Circuit Protection
  • Package: 3AB, 3AG, 1/4" x 1-1/4"
  • Mounting: Holder
  • Supply and Demand Status: Balanced
  • Estimated EOL Date: 2023
