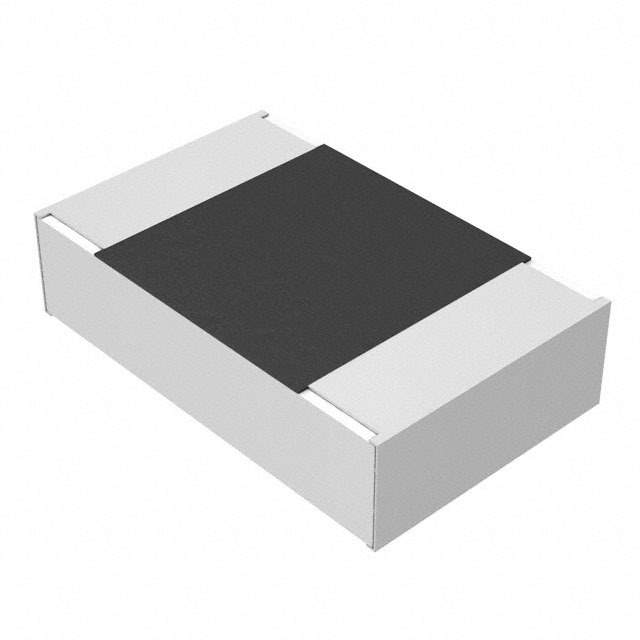

The ERA6AEB224V is a thick film chip resistor from Panasonic, designed for surface mount applications. This resistor offers excellent stability and reliability in a compact size, making it suitable for a wide range of electronic circuits. The ERA series is known for its high precision and stable resistance values.

Applications

• General-purpose electronic circuits
• Current sensing
• Voltage dividers
• Consumer electronics
• Industrial equipment

Features

• Resistance Value: 220 kΩ (224)
• Tolerance: ±0.1%
• Temperature Coefficient of Resistance (TCR): ±25 ppm/°C
• Power Rating: 0.125 W (1/8 W)
• Case Size: 0805 (2012 metric)
• Thick Film Technology: Provides excellent stability and reliability.

Benefits

• High Precision: Tight tolerance ensures accurate resistance values.
• Excellent Stability: Low TCR minimizes resistance changes over temperature.
• Compact Size: Small footprint suitable for high-density circuit boards.
• High Reliability: Stable performance under various environmental conditions.
• RoHS Compliant: Environmentally friendly.

Additional Details

The ERA6AEB224V is a surface mount resistor conforming to the 0805 case size. The operating temperature range is typically -55°C to +155°C. It is crucial to refer to the datasheet for complete specifications, including derating curves and soldering recommendations. The resistor is designed to withstand standard reflow soldering processes. Its high stability and precision make it an excellent choice for applications where accuracy is important.
