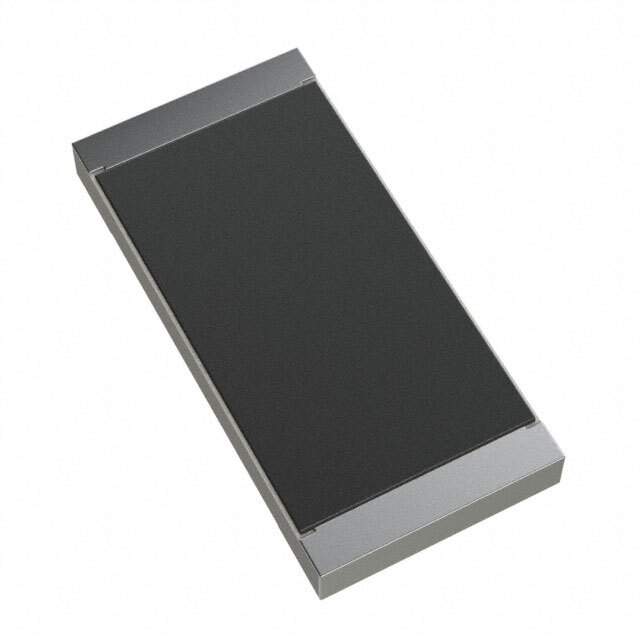

CSRF2010FTR100 Real Image
Same model may have multiple batches, images only for reference.

CSRF2010FTR100

Part No CSRF2010FTR100
Manufacturer Stackpole Electronics Inc.
Catalog Chip Resistor - Surface Mount
Description RES CS, 2010, 0.1 OHM, 1%, 1W / 100 mOhms ±1% 1W Chip Resistor 2010 (5025 Metric) Current Sense, Moisture Resistant Metal Foil
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Resistors>Chip Resistor - Surface Mount
Mfr Stackpole Electronics Inc
Series CSRF
Package Tape & Reel
Resistance 100 mOhms
Tolerance ±1%
Power (Watts) 1W
Composition Metal Foil
Features Current Sense, Moisture Resistant
Temperature Coefficient ±50ppm/°C
Temperature Range - Operating -55°C ~ 170°C
Package / Case 2010 (5025 Metric)
Supplier Device Package 2010
Dimension 0.197" L x 0.098" W (5.00mm x 2.50mm)
Height - Seated (Max) 0.037" (0.95mm)
Number of Terminations 2
ECCN EAR99
HTSUS 8533.21.0030
Other Names 738-CSRF2010FTR100CT,738-CSRF2010FTR100DKR,738-CSRF2010FTR100TR
Standard Package 4,000
Win Source Part Number 1015380-CSRF2010FTR100
Ultra Librarian 3D Model Ultra Librarian CSRF2010FTR100 CAD Model

Description

The Stackpole Electronics Inc CSRF2010FTR100 chip resistor is a surface-mountable component that is designed for current sensing applications.

  • Resistance: 100 mOhms
  • Power Rating: 1W
  • Tolerance: ±1%
  • Temperature Coefficient: ±50ppm/°C
  • Package/Case: 2010 (5025 Metric)
  • Height (Seated): 0.037" (0.95mm)
  • Operating Temperature Range: -55°C to 170°C
  • Feature: Moisture-resistant
  • Packaging: Tape and reel
