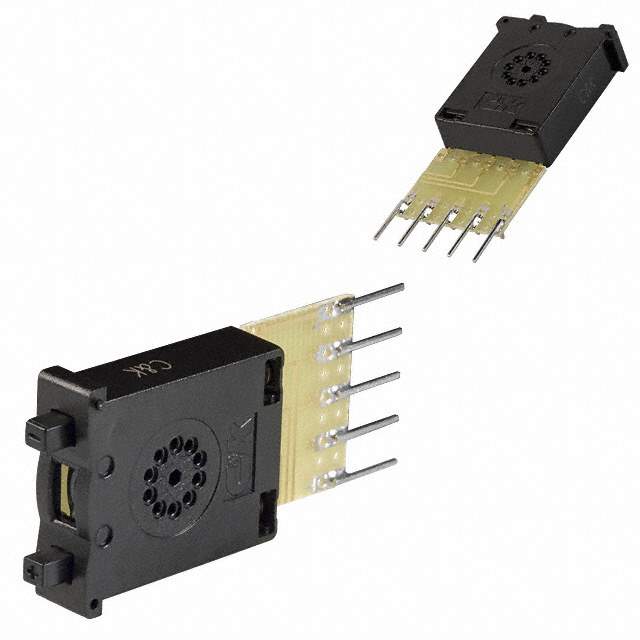

3P0210A02 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Switches>Thumbwheel Switches
Mfr C&K
Series 3P
Package Tray
Product Status Obsolete
Output Code BCD
Read Out 0 ~ 9
Number of Sections 1
Actuator Type Pushwheel
Contact Rating @ Voltage 0.1A @ 30VDC
Contact Material Copper Alloy
Contact Finish Gold
Mounting Type Panel Mount, Snap-In
Termination Style PC Pin with Component Mounting
End Caps Sold Separately
Section Width 0.300" (7.62mm)
Features Dust Lens
Temperature Range - Operating -10°C ~ 65°C
Depth Behind Flange 42.10mm
Housing Material Polycarbonate (PC)
Color Black
Electrical Life 100,000 Cycles
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Other Names CKN5046,3P0210A02-ND,*3P0210A02
Standard Package 1
Win Source Part Number 991279-3P0210A02
Ultra Librarian 3D Model Ultra Librarian 3P0210A02 CAD Model

Description

The C&K Components 991279-3P0210A02 is a black thumbwheel switch with a pushwheel actuator type and a PC pin with component mounting termination style.

  • Actuator Type: pushwheel
  • Termination Style: PC pin with component mounting
  • Feature: dust lens
  • Contact Finish: gold
  • Contact Rating: 0.1A @ 30VDC
  • Temperature Range: -10°C to 65°C
  • Readout: 0 ~ 9
  • Depth Behind Flange: 42.10mm
  • Mounting Type: panel mount, snap-in
  • Output Code: BCD
