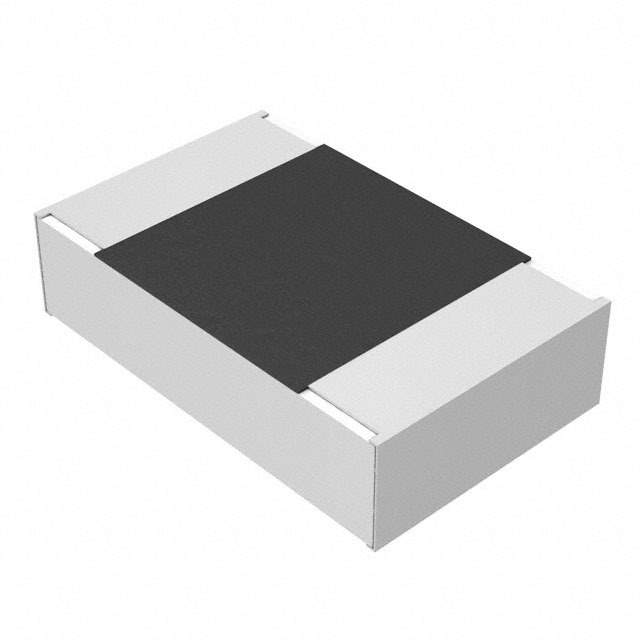

The ERA-S15J820V is a thick film chip resistor manufactured by Panasonic. It is part of the ERA series of high-reliability resistors, designed for use in demanding applications requiring stable and precise resistance values.

Applications

• Power supplies
• Consumer electronics
• Industrial equipment
• Automotive electronics
• Medical devices

Features

• High reliability
• Thick film resistive element
• Small size (1206 package)
• RoHS compliant
• AEC-Q200 qualified
• Excellent pulse withstanding performance
• High stability

Benefits

• Provides stable and accurate resistance in various operating conditions.
• Saves board space due to its small size.
• Meets environmental regulations (RoHS).
• Suitable for automotive applications due to AEC-Q200 qualification.
• Withstands high pulse loads, improving circuit robustness.
• Long lifespan and consistent performance.

Technical Specifications

The ERA-S15J820V has a resistance value of 82 Ohms with a tolerance of ±5%. It has a power rating of 0.5W and a temperature coefficient of ±200 ppm/°C. The operating temperature range is -55°C to +155°C. The resistor is packaged in a standard 1206 surface mount package.

The ERA-S15J820V offers superior reliability and stability compared to standard chip resistors, making it suitable for use in critical circuits. The AEC-Q200 qualification ensures its suitability for automotive applications, where reliability and performance are paramount. The small size allows for high-density circuit designs. Its pulse withstanding capabilities make it a robust choice for applications exposed to surge currents. The 82 Ohm resistance value is suitable for various current limiting, pull-up, or pull-down applications within electronic circuits. Its thick film construction contributes to its overall robustness and longevity.
