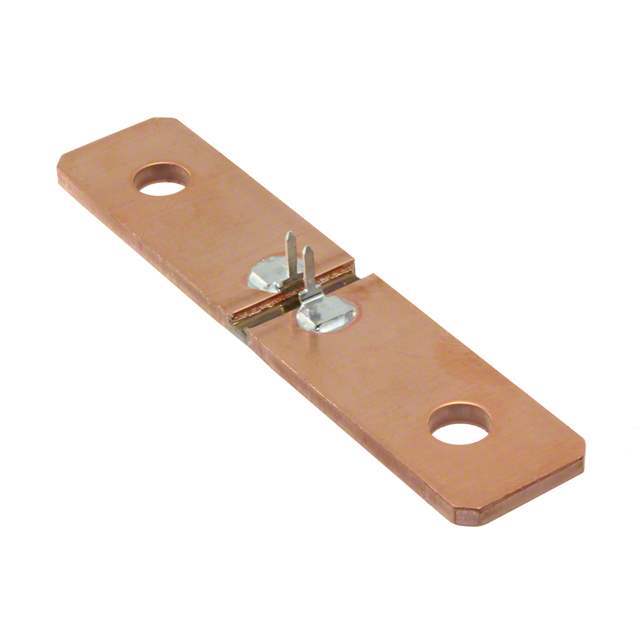

WSBS8518L1000JK20 Vishay Dale
Same model may have multiple batches, images only for reference.

WSBS8518L1000JK20

Part No WSBS8518L1000JK20
Manufacturer Vishay
Catalog Specialized Resistors
Description RESISTOR SHUNT 100 UOHM 5% 36W
Datasheet
WSBS8518L1000JK20 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1308142-WSBS8518L1000JK20
Manufacturer Vishay Dale
Manufacturer Resistors> Specialized Resistors
Category Resistors> Specialized Resistors
Packaging  Bulk
Part Status Active
Type Shunt, Battery
Composition Metal Element
Resistance (Ohms) 100 µOhms
Power (Watts) 36W
Mounting Type Shunt Fixture, 60mm Pitch
Ultra Librarian 3D Model Ultra Librarian WSBS8518L1000JK20 CAD Model

Description

FEATURES
• High power to resistor size ratio
• Proprietary processing technique produces extremely low resistance values
• All welded construction
• Very low inductance (< 5 nH)
• Low thermal EMF (as low as < 1 μV/°C)
• AEC-Q200 qualified
• Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
