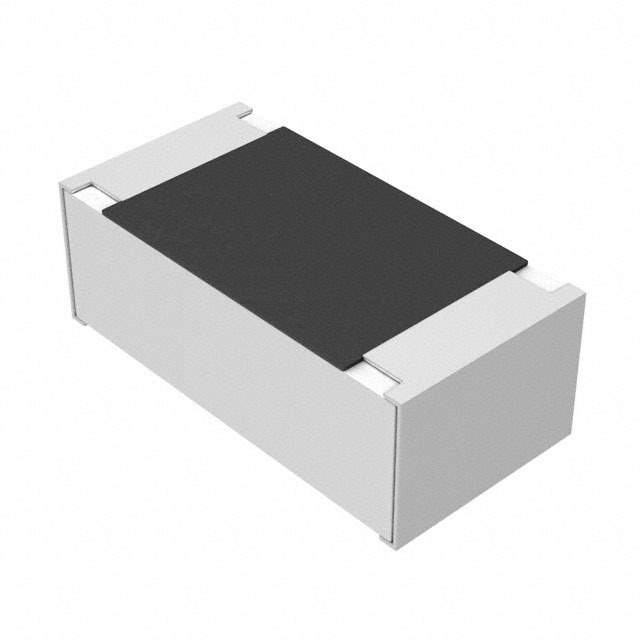

ERA-2AEB243X Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Resistors - Chip Resistor - Surface Mount
Mfr Panasonic Electronic Components
Series ERA-2A
Package Tape & Reel
Resistance 24 kOhms
Tolerance ±0.1%
Power (Watts) 0.063W, 1/16W
Composition Thin Film
Features Automotive AEC-Q200
Temperature Coefficient ±25ppm/°C
Temperature Range - Operating -55°C ~ 155°C
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402
Ratings AEC-Q200
Size / Dimension 0.039" L x 0.020" W (1.00mm x 0.50mm)
Height - Seated (Max) 0.016" (0.40mm)
Number of Terminations 2
Base Product Number ERA-2AE
Standard Package 10,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8533.21.0030
Win Source Part Number 1338812-ERA-2AEB243X
Ultra Librarian 3D Model Ultra Librarian ERA-2AEB243X CAD Model

Description

The Panasonic Electronic Components ERA-2A series chip resistor is an excellent choice for automotive AEC-Q200 applications.

  • Manufacturer: Panasonic Electronic Components
  • Series: ERA-2A
  • Resistance: 24 kOhms
  • Tolerance: ±0.1%
  • Temperature Coefficient: ±25ppm/°C
  • Mounting Style: Surface Mount
  • Length: 0.039 inches
  • Width: 0.020 inches
  • Height-Seated: 0.016 inches
  • Power Rating: 0.063W
  • AEC-Q200: Rated
  • Application: Automotive
