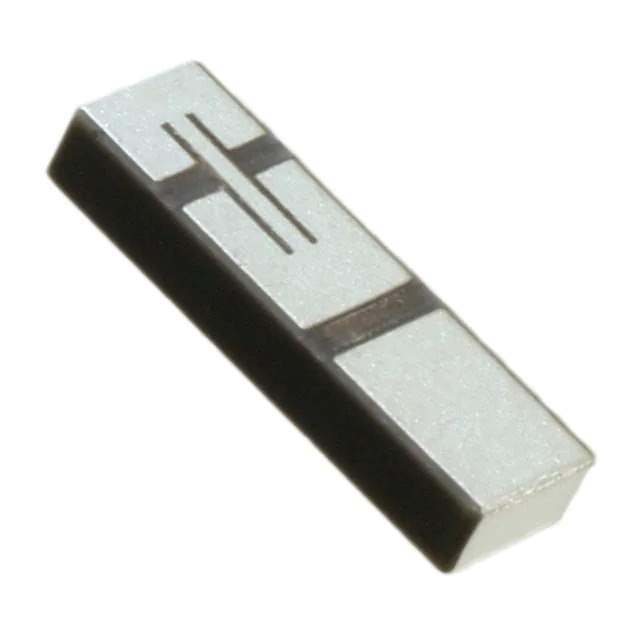

W3006 Real Image
Same model may have multiple batches, images only for reference.

W3006

Part No W3006
Manufacturer Pulse
Catalog RF Antennas
Description RF ANT 2.4GHZ/5.5GHZ CHIP SLD
Datasheet
W3006 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Pulse
Package Tape & Reel
Product Status Active
RF Family/Standard 802.15.4, WiFi
Frequency Group UHF (2GHz ~ 3GHz), SHF (f > 4GHz)
Frequency (Center/Band) 2.4GHz, 5.5GHz
Frequency Range 2.4GHz ~ 2.483GHz, 5.15GHz ~ 5.85GHz
Antenna Type Chip
Number of Bands 2
Return Loss -8dB, -10dB
Gain 3.2dBi, 4.2dBi
Termination Solder
Mounting Type Surface Mount
Height (Max) 0.059" (1.50mm)
Applications WLAN, Zigbee™
Standard Package 1,000 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Win Source Part Number 697413-W3006
Ultra Librarian 3D Model Ultra Librarian W3006 CAD Model

Description

The 697413-W3006 is an RF antenna designed for use in RF and wireless - RF antenna applications.

  • Application: RF and Wireless - RF Antenna
  • Antenna Type: Chip
  • Termination: Solder
  • Packaging: Tape & reel
  • Mounting Type: Surface Mount
  • Height: 0.059" (1.50mm)
  • Applications: WLAN and Zigbee™
  • Frequency Range: 2.4GHz to 2.483GHz and 5.15GHz to 5.85GHz
  • Return Loss: -8dB and -10dB
  • Gain: 3.2dBi and 4.2dBi
  • Manufacturer: Pulse
  • Standard Package: 1,000 pieces
