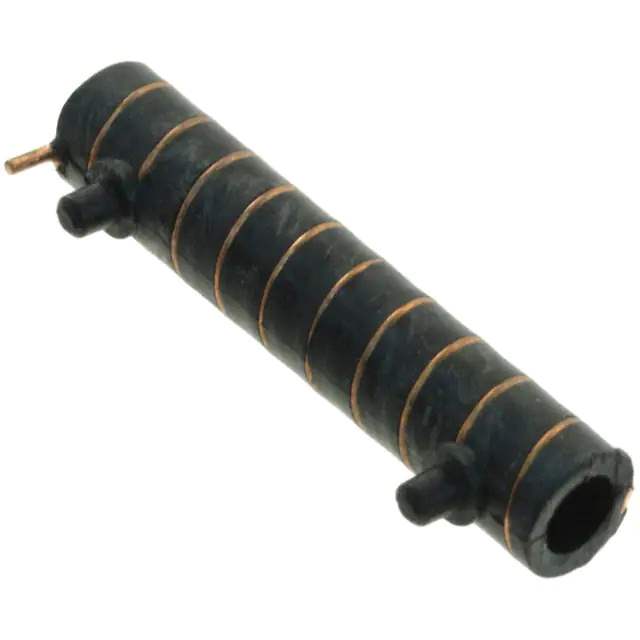

W3127 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF and Wireless - RF Antennas
Mfr Pulse
Package Tray
Product Status Active
Frequency Group UHF (300MHz ~ 1GHz)
Frequency (Center/Band) 433MHz
Frequency Range 433MHz ~ 435MHz
Antenna Type Helical
Number of Bands 1
Return Loss -15dB
Gain -2.9dBi
Termination Solder
Mounting Type Through Hole
Height (Max) 0.276" (7.00mm)
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8529.10.9100
Win Source Part Number 938964-W3127
Ultra Librarian 3D Model Ultra Librarian W3127 CAD Model

Description

The RF Antenna with Win Source Part Number 938964-W3127 is a solder termination type antenna designed for RF and wireless applications.

  • Frequency Range: 433MHz to 435MHz
  • Frequency Group: UHF (300MHz to 1GHz)
  • Antenna Type: helical
  • Band: Single
  • Return Loss: -15dB
  • Gain: -2.9dBi
  • Mounting Type: Through Hole
  • Standard Package: 100 pieces
  • Ingress Protection: -
  • Manufacturer: Pulse
  • MSL Level: 1 (unlimited)
  • REACH: Unaffected
  • ECCN: EAR99
  • HTSUS Code: 8529.10.9100
