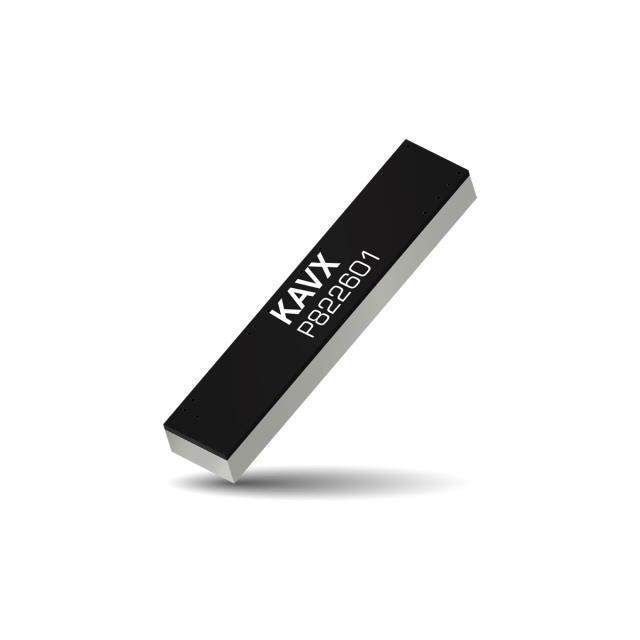

P822601-01 Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category RF/IF and RFID>RF Antennas
Mfr Ethertronics/AVX
Package Bulk
RF Family/Standard Cellular
Frequency Group Wide Band
Frequency (Center/Band) 700MHz, 750MHz, 829MHz, 850MHz, 900MHz, 1.8GHz, 1.9GHz, 1.955GHz, 2.1GHz, 2.6GHz
Frequency Range 698MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.5GHz ~ 2.7GHz
Antenna Type Chip
Number of Bands 10
VSWR 2.5
Gain 2.6dBi, 4.4dBi, 3.4dBi
Power - Max 2 W
Termination Solder
Mounting SMD (SMT)
Height (Max) 0.126" (3.20mm)
Applications LoRa, LPWAN, LTE, Sigfox
Base Product Number P822601
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8529.10.9100
Other Names 478-13409
Standard Package 5
Win Source Part Number 1085560-P822601-01
Ultra Librarian 3D Model Ultra Librarian P822601-01 CAD Model

Description

The P822601-01 is an RF antenna manufactured by Ethertronics/AVX.

  • Antenna Type: Chip Antenna
  • Frequency Range: 698MHz ~ 960MHz, 1.71GHz ~ 2.2GHz, 2.5GHz ~ 2.7GHz
  • Power: 2W
  • VSWR: 2.5
  • Frequency Group: Wideband
  • Gain: 2.6dBi, 4.4dBi, 3.4dBi
  • Applications: LoRa, LPWAN, LTE, Sigfox
  • Antenna Type: Thin Film
  • Number of Bands: 10
  • Termination Style: Solder
  • Win Source Part Number: 1085560-P822601-01
