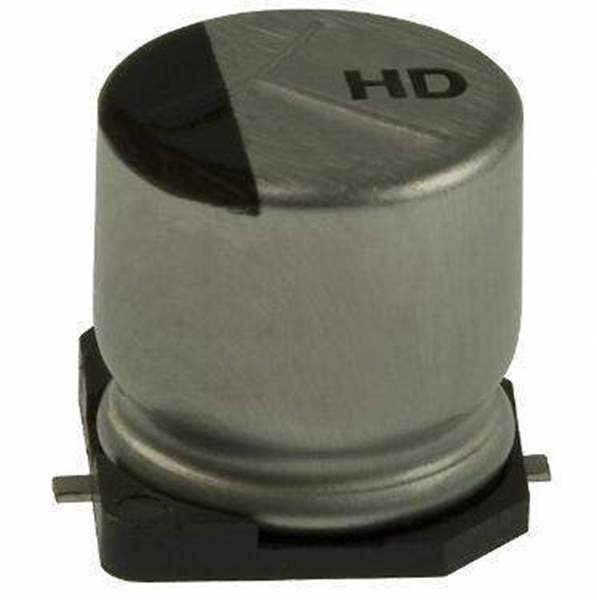

Same model may have multiple batches, images only for reference.

EEE-HD1E470AP

Name: EEE-HD1E470AP
Brand: Panasonic
SKU: WS1307652
Availability: InStock
Rating: 4.84 (5 reviews)

Get a Quote

Part No	EEE-HD1E470AP
Manufacturer	Panasonic
Catalog	Aluminum Capacitors
Description	CAP ALUM 47UF 20% 25V SMD
Datasheet	EEE-HD1E470AP Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Manufacturer	Panasonic Electronic Components
Category	Capacitors Aluminum Electrolytic Capacitors
Part Status	Active
Capacitance	47 µF
Tolerance	±20%
Voltage - Rated	25 V
Lifetime @ Temp.	5000 Hrs @ 105°C
Operating Temperature	-40°C ~ 105°C
Ripple Current @ Low Frequency	56 mA @ 120 Hz
Ripple Current @ High Frequency	95.2 mA @ 10 kHz
Impedance	2 Ohms
Size / Dimension	0.315" Dia (8.00mm)
Height - Seated (Max)	0.244" (6.20mm)
Surface Mount Land Size	0.327" L x 0.327" W (8.30mm x 8.30mm)
Win Source Part Number	WS1307652-EEE-HD1E470AP
Ultra Librarian 3D Model	Ultra Librarian EEE-HD1E470AP CAD Model

Description

47 µF 25 V Aluminum Electrolytic Capacitors Radial, Can - SMD 5000 Hrs @ 105°C
