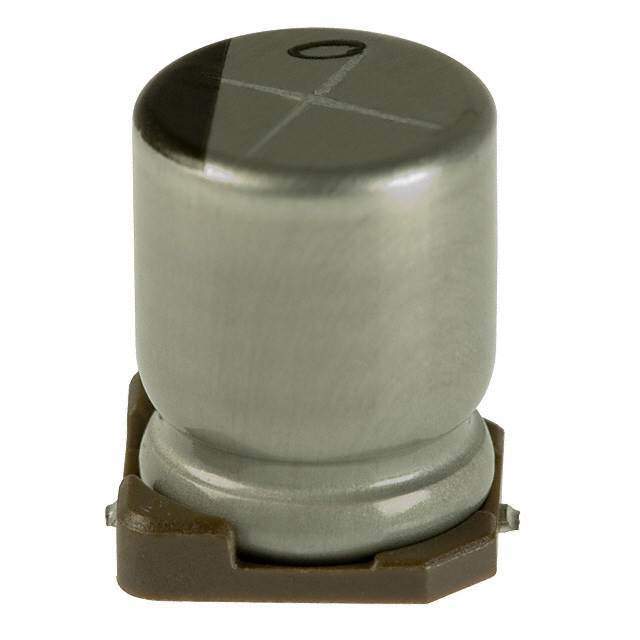

UUD1H101MNL1GS Real Image
Same model may have multiple batches, images only for reference.

UUD1H101MNL1GS

Part No UUD1H101MNL1GS
Manufacturer Nichicon
Catalog Aluminum Capacitors
Description Chip Type, Low Impedance | CAP ALUM 100UF 20% 50V SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Nichicon
Packaging Reel
Capacitance 100μF
Tolerance ±20%
Voltage - Rated 50V
Lifetime at Temp. 5000 Hrs at 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current at Low Frequency 150mA at 120Hz
Ripple Current at High Frequency 300mA at 100kHz
Impedance 340 mOhms
Parts Dimension 0.315" Dia (8.00mm)
Height - Seated (Maximum) 0.394" (10.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Style SMD
Manufacturer Package Radial, Can - SMD
Manufacturer Pack Quantity 1
MSL Level 1 (Unlimited)
Win Source Part Number 1278757-UUD1H101MNL1GS
Manufacturer Homepage www.nichicon-us.com
Popularity Medium
Supply and Demand Status Balance
Application Field Used in Computers & Computer Peripherals
Ultra Librarian 3D Model Ultra Librarian UUD1H101MNL1GS CAD Model

Description

The Nichicon UUD1H101MNL1GS is a general-purpose capacitor that is designed to provide high capacitance of 100μF with a tolerance of ±20%.

  • Manufacturer: Nichicon
  • Packaging: Radial, can-SMD
  • Polarized: Yes
  • Capacitance: 100μF
  • Tolerance: ±20%
  • Voltage Rating: 50V
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Application: Computers and computer peripherals
  • Supply and Demand: Balance
  • Available in: Reel packaging
  • Seated Height: 0.394" (10.00mm)
  • Parts Dimension: 0.315" Dia (8.00mm)
  • Lifetime: 5000 hours @ 105°C
  • Ripple Currents: 150mA @ 120Hz and 300mA @ 100kHz
