Products specifications

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Panasonic Electronic Components
Series FT, Anti-Vibration
Package Tape & Reel
Capacitance 330 µF
Tolerance ±20%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 120mOhm @ 100kHz
Lifetime @ Temp. 5000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Polarization Polar
Ratings AEC-Q200
Applications Automotive, High Temperature Reflow
Ripple Current @ Low Frequency 585 mA @ 120 Hz
Ripple Current @ High Frequency 900 mA @ 100 kHz
Dimension 0.394" Dia (10.00mm)
Height - Seated (Max) 0.425" (10.80mm)
Surface Mount Land Size 0.406" L x 0.406" W (10.30mm x 10.30mm)
Mounting SMD (SMT)
Package / Case Radial, Can - SMD
Base Product Number EEE-FT
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Other Names P124819CT,P124819DKR,P124819TR,EEEFT1H331GV
Standard Package 500
Win Source Part Number 960894-EEE-FT1H331GV
Ultra Librarian 3D Model Ultra Librarian EEE-FT1H331GV CAD Model

Description

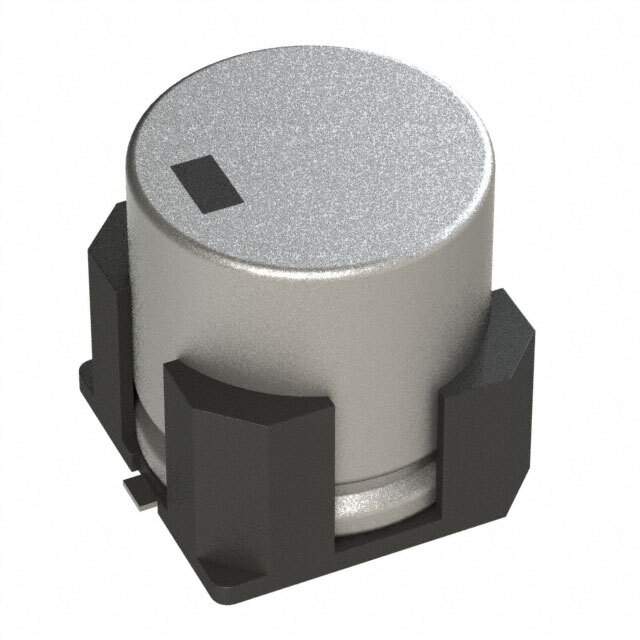

The EEE-FT1H331GV is an aluminum electrolytic capacitor that belongs to the Capacitors category.

  • Capacitance: 330μF
  • Voltage Rating: 50V
  • Tolerance: ±20%
  • Operating Temperature Range: -55°C to 105°C
  • Ripple Current: 585mA @ 120Hz and 900mA @ 100kHz
  • Lifetime: 5000 hours @ 105°C
  • Polarized: Yes
  • Package: Radial, can - SMD
  • Surface Mount Land Size: 0.406” L x 0.406” W (10.30mm x 10.30mm)
  • Applications: Automotive and high-temperature reflow applications
