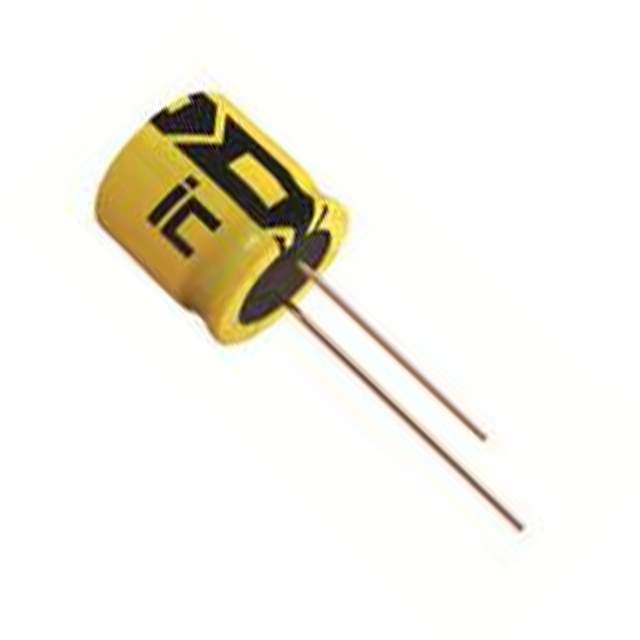

Same model may have multiple batches, images only for reference.

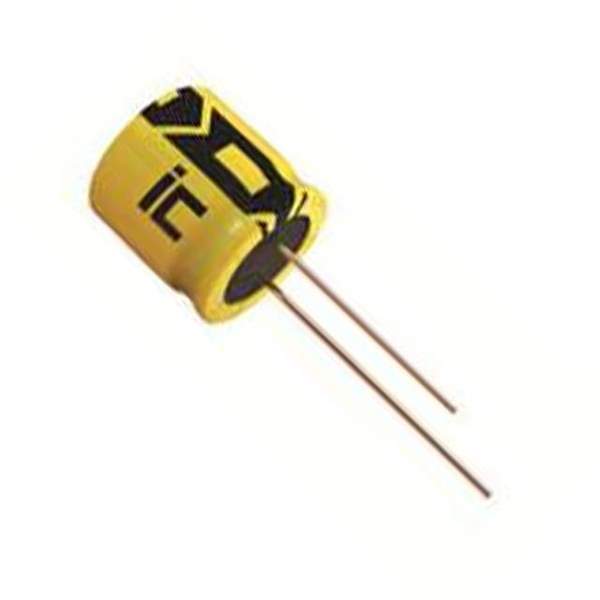

225RSS050M Real Image
Same model may have multiple batches, images only for reference.

225RSS050M

Part No 225RSS050M
Manufacturer Illinois Capacitor
Catalog Aluminum Capacitors
Description CAP ALUM 2.2UF 20% 50V THRU HOLE / Cap Aluminum Lytic 2.2uF 50V 20% (4 X 7mm) Radial 1.5mm 75.358 Ohm 20mA 1000h 85°C Bulk
Datasheet
225RSS050M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Illinois Capacitor
Series RSS
Packaging Bulk
Capacitance 2.2μF
Tolerance ±20%
Voltage Rating DC 50V
ESR (Equivalent Series Resistance) 75.358 Ohm @ 120Hz
Lifetime @ Temp. 1000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 20mA @ 120Hz
Ripple Current - High Frequency 28mA @ 100kHz
Lead Spacing 0.059" (1.50mm)
Dimension 0.157" Dia (4.00mm)
Height - Seated (Maximum) 0.315" (8.00mm)
Mounting Style Through Hole
Package Radial, Can
Win Source Part Number 793395-225RSS050M
Popularity Medium
Supply and Demand Status Limited
Family Name RSS
Introduction Date May 19, 2006
ECCN EAR99
Country of Origin China
Estimated EOL Date 2029
Ultra Librarian 3D Model Ultra Librarian 225RSS050M CAD Model

Description

The Illinois Capacitor RSS series is a radial, can-type capacitor designed for general applications.

  • Capacitance: 2.2μF
  • Voltage Rating: 50V
  • Low ESR: 75.358 Ohm @ 120Hz
  • Ripple Current: 20mA @ 120Hz, 28mA @ 100kHz
  • Series: RSS
