Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.12μF
Tolerance ±5%
Voltage Rating - DC 250V
Temperature Range - Operating -55°C to 85°C
Mounting SMD (SMT)
Dimension 0.236" L x 0.197" W (6.00mm x 5.00mm)
Height - Seated (Max) 0.189" (4.80mm)
Termination Solder Pads
Applications High Frequency, Switching; High Pulse, DV/DT
Win Source Part Number 136722-ECW-U2124V16
Popularity Medium
Supply and Demand Status Limited
Ultra Librarian 3D Model Ultra Librarian ECW-U2124V16 CAD Model

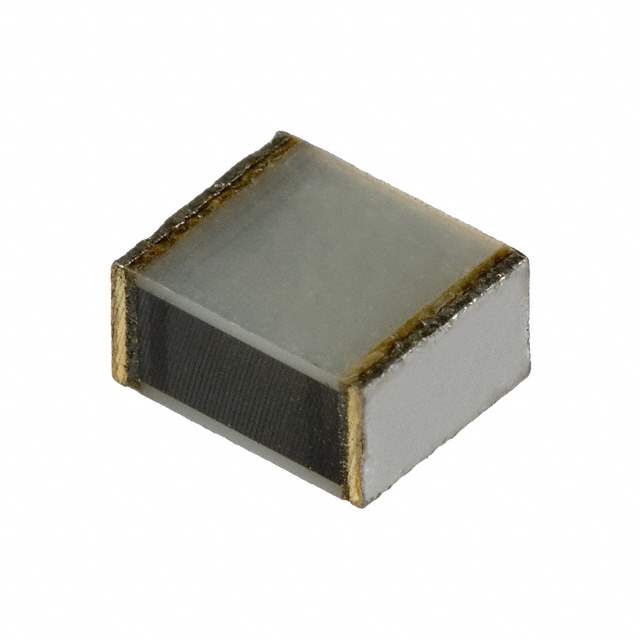

Description

The ECW-U2124V16 capacitor provides high reliability and efficiency for various electrical applications. Its design supports both innovative and traditional uses, delivering high performance across the board.

Features & Benefits

  • High volumetric efficiency minimizes board space usage.
  • Exceptional load life for reduced replacement frequency.
  • Cost-effective with superior quality and performance.
  • Integrated design supports high-density electronics.

Applications

  • Aerospace applications
  • Power conditioning
  • Server and storage systems
  • Solar inverters
  • Renewable energy systems

With its robust performance and wide array of applications, the ECW-U2124V16 capacitor is a reliable choice for advanced electronic designs.
