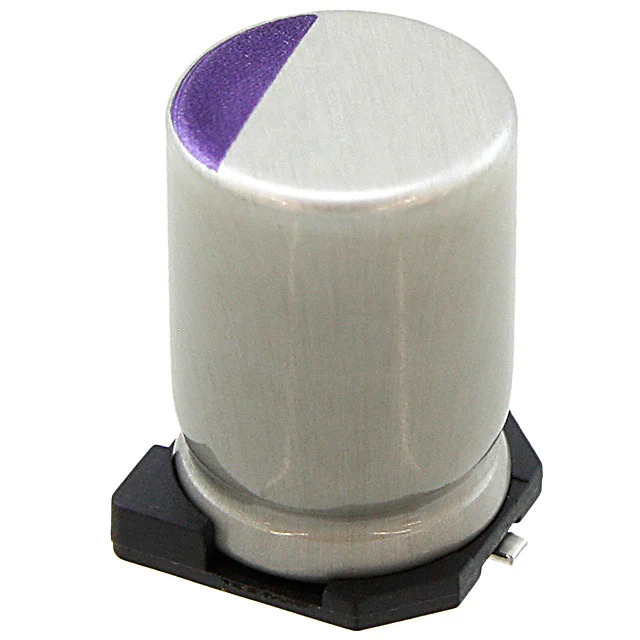

6SVPC820M Panasonic
Same model may have multiple batches, images only for reference.

6SVPC820M

Part No 6SVPC820M
Manufacturer Panasonic
Catalog Aluminum - Polymer Capacitors
Description CAP ALUM POLY 820UF 20% 6.3V SMD / 820 µF 6.3 V Aluminum - Polymer Capacitors Radial, Can - SMD 12mOhm 2000 Hrs @ 105°C
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Aluminum - Polymer Capacitors
Mfr Panasonic Electronic Components
Series OS-CON™, SVPC
Package Tape & Reel
Product Status Active
Type Polymer
Capacitance 820 µF
Tolerance ±20%
Voltage - Rated 6.3 V
ESR (Equivalent Series Resistance) 12mOhm
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -55°C ~ 105°C
Ratings -
Applications General Purpose
Ripple Current @ Low Frequency 235 mA @ 120 Hz
Ripple Current @ High Frequency 4.7 A @ 100 kHz
Lead Spacing -
Size / Dimension 0.315" Dia (8.00mm)
Height - Seated (Max) 0.472" (12.00mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting Type Surface Mount
Package / Case Radial, Can - SMD
Base Product Number 6SVPC
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1377581-6SVPC820M
Ultra Librarian 3D Model Ultra Librarian 6SVPC820M CAD Model

Description

The SVPC820M is a polymer capacitor from Panasonic Electronic Components.

  • Series: OS-CON™ SVPC
  • Application: General Purpose
  • Capacitance: 820μF
  • Tolerance: ±20%
  • Voltage - Rated: 6.3V
  • ESR (Equivalent Series Resistance): 12mOhm
  • Lifetime @ Temp.: 2000 Hrs @ 105°C
  • Mounting Type: Surface Mount
  • Package / Case: Radial, Can - SMD
  • Size / Dimension: 0.315" Dia (8.00mm)
  • Height - Seated (Max): 0.472" (12.00mm)
  • Ripple Current - Low Frequency: 235mA @ 120 Hz
  • Ripple Current - High Frequency: 4.7A @ 100 kHz
  • REACH SVHC Status: Unaffected
  • ECCN: EAR99
