Products specifications Report Issue?

Categories Capacitors
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Capacitance 0.33μF
Tolerance ±20%
Voltage Rating - DC 16V
Dielectric Material Acrylic, Metallized - Stacked
Temperature Range - Operating -40°C to 85°C
Mounting SMD (SMT)
Dimension 0.126" L x 0.063" W (3.20mm x 1.60mm)
Height - Seated (Max) 0.047" (1.20mm)
Termination Solder Pads
Applications EMI, RFI Suppression
Features Low ESR
Win Source Part Number 102465-ECP-U1C334MA5
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian ECP-U1C334MA5 CAD Model

Description

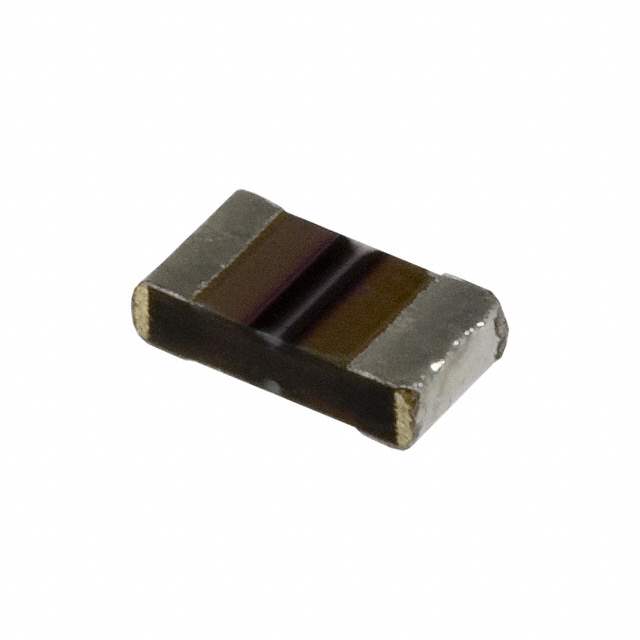

ECP-U1C334MA5 Capacitor

The ECP-U1C334MA5 is a high-quality capacitor designed for a variety of electronic applications, offering reliability and performance.

  • Capacitance: 330,000 μF
  • Voltage Rating: 16V
  • Temperature Range: -40°C to +105°C

Applications and Projects:

  • Power supply units
  • Audio amplification systems
  • Motor drives
  • Signal processing devices

Features and Benefits:

  • Low leakage current for enhanced performance
  • Stable capacitance across temperature changes
  • Compact size for space-saving circuit designs
  • Long lifespan for reduced maintenance costs

This capacitor is ideal for engineers and hobbyists looking for a reliable component for high-performance circuitry.
