Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Panasonic Electronic Components
Series ECH-U(X)
Package Tape & Reel
Capacitance 1800 pF
Tolerance ±5%
Voltage Rating - AC 11V
Voltage Rating - DC 16V
Dielectric Material Polyphenylene Sulfide (PPS), Metallized - Stacked
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 0603 (1608 Metric)
Dimension 0.063" L x 0.031" W (1.60mm x 0.80mm)
Height - Seated (Max) 0.033" (0.85mm)
Termination Solder Pads
Applications General Purpose
Base Product Number ECH-U1
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0010
Other Names PCF1474TR-NDR,PCF1474DKR,PCF1474TR,ECHU1C182JX5,PCF1474DKR-NDR,PCF1474CT,PCF1474CT-NDR
Standard Package 4,000
Win Source Part Number 1056771-ECH-U1C182JX5
Ultra Librarian 3D Model Ultra Librarian ECH-U1C182JX5 CAD Model

Description

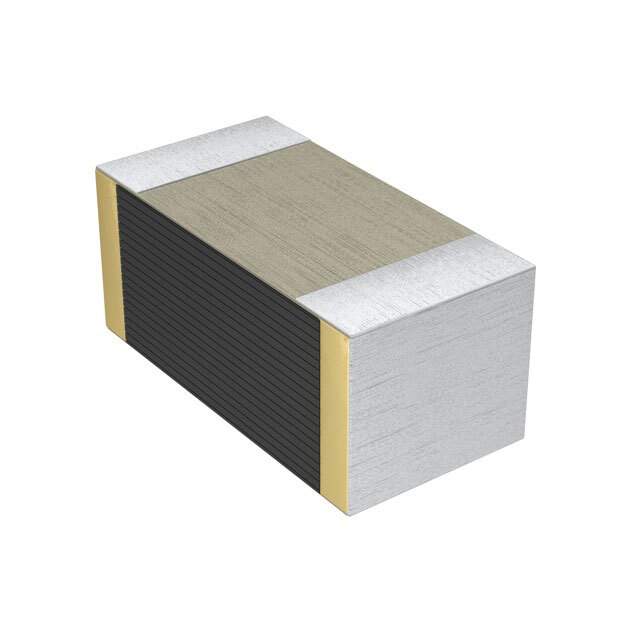

The ECH-U1C182JX5 is a film capacitor that belongs to the Capacitors category of electronic components.

  • Capacitance: It has a capacitance of 1800 pF
  • Tolerance: and a tolerance of ±5%.
  • Manufacturer: The ECH-U1C182JX5 capacitor is manufactured by Panasonic Electronic Components
  • Voltage Rating - AC: and has a voltage rating of 11V (AC)
  • Voltage Rating - DC: and 16V (DC).
  • Purpose: It is a general-purpose capacitor
  • Package Type: with a package type of tape & reel
  • Mounting: and is mounted using SMD (SMT) technology.
  • Temperature Range: The ECH-U1C182JX5 capacitor has a temperature range of -55°C to 125°C
  • Package/Case: and is packaged in a 0603 (1608 Metric) case.
  • REACH: It is REACH unaffected
  • ECCN: and has an ECCN of EAR99.
