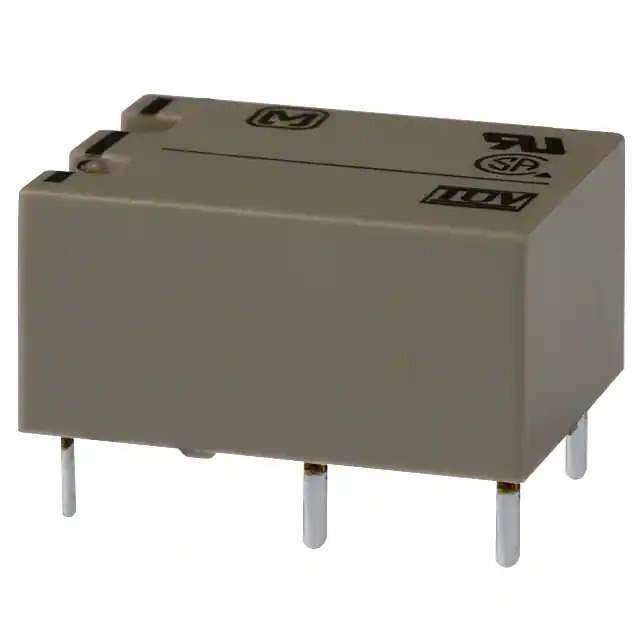

DK2A-5V Real Image
Same model may have multiple batches, images only for reference.

DK2A-5V

Part No DK2A-5V
Manufacturer Panasonic
Catalog Power Relays, Over 2 Amps
Description RELAY GEN PURPOSE DPST 8A 5V / General Purpose Relay DPST-NO (2 Form A) 5VDC Coil Through Hole
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Power Relays, Over 2 Amps
Mfr Panasonic
Series DK
Package Bulk
Product Status Active
Mounting Type Through Hole
Coil Voltage 5VDC
Contact Form DPST-NO (2 Form A)
Contact Rating (Current) 8 A
Switching Voltage 250VAC, 125VDC - Max
Coil Current 40 mA
Coil Type Non Latching
Termination Style PC Pin
Seal Rating Sealed - Fully
Must Operate Voltage 3.5 VDC
Must Release Voltage 0.5 VDC
Operate Time 10 ms
Release Time 8 ms
Temperature Range - Operating -40°C ~ 65°C
Contact Material Silver Nickel (AgNi)
Relay Type General Purpose
Coil Resistance 125 Ohms
Base Product Number DK2A
Standard Package 50 pcs
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0020
Win Source Part Number 844461-DK2A-5V
Ultra Librarian 3D Model Ultra Librarian DK2A-5V CAD Model

Description

The DK2A-5V is a power relay from the DK series manufactured by Panasonic.

  • Contact Form: DPST-NO (2 Form A)
  • Contact Rating: 8A @ 250VAC, 125VDC
  • Coil Voltage: 5VDC
  • Coil Resistance: 125 Ohms
  • Operate Time: 10ms
  • Release Time: 8ms
  • Mounting Type: Through-Hole
  • Temperature Range: -40°C to 65°C
  • Features: High Current, Sealed
