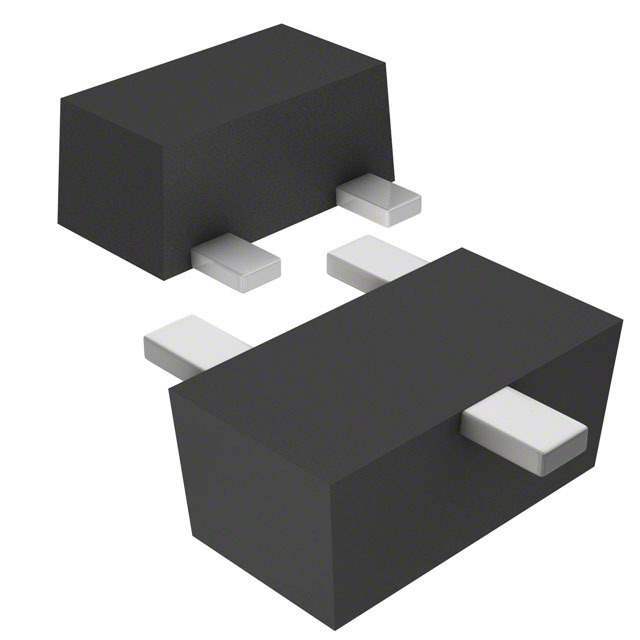

DB3S314K0L

Part No DB3S314K0L
Manufacturer Panasonic
Catalog Diodes, Rectifiers - Single
Description DIODE SCHOTTKY 30V 30MA SSMINI3  /  Diode Schottky 30 V 30mA (DC) Surface Mount SSMini3-F3-B
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Panasonic Electronic Components
Package Tape & Reel (TR)
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 30mA (DC)
Voltage - Forward (Vf) (Max) @ If 1 V @ 30 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 1 ns
Current - Reverse Leakage @ Vr 300 nA @ 30 V
Capacitance @ Vr, F 1.5pF @ 10V, 1MHz
Mounting SMD (SMT)
Package / Case SC-89, SOT-490
Supplier Device Package SSMini3-F3-B
Operating Temperature - Junction 125°C (Max)
Base Product Number DB3S314
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0070
Standard Package 3,000
Win Source Part Number 1182046-DB3S314K0L
Ultra Librarian 3D Model Ultra Librarian DB3S314K0L CAD Model

Description

The Panasonic Electronic Components DB3S314K0L is a Schottky diode with a voltage rating of 30 V and a current rating of 30 mA (DC).

  • Voltage Rating: 30 V
  • Current Rating: 30 mA (DC)
  • Forward Voltage: 1 V @ 30 mA
  • Reverse Recovery Time: 1 ns
  • Capacitance: 1.5pF @ 10V, 1MHz
  • Diode Type: SMD (SMT)
  • Package: Tape and Reel
  • Package/Case: SC-89, SOT-490
  • Supplier Device Package: SSMini3-F3-B
  • Operating Temperature - Junction: 125°C (Max)
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.10.0070
