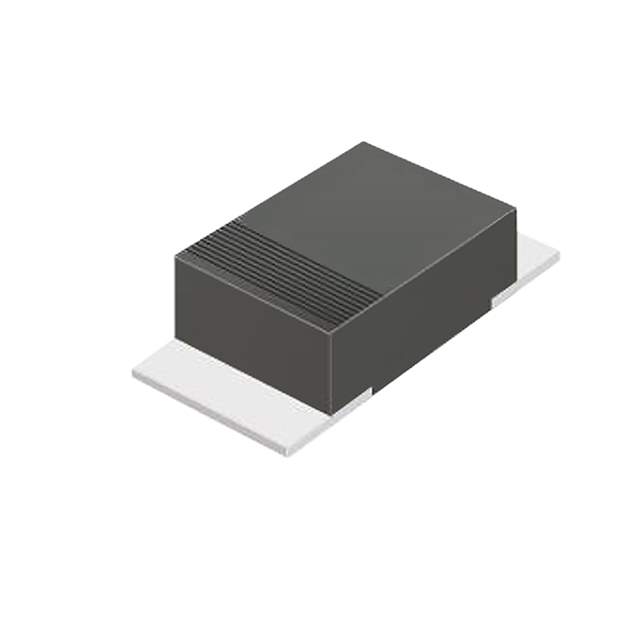

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Estimated Pruduction Lead Time 7 Weeks
Features Diode Standard 400 V 1A Surface Mount SOD-123F
Manufacturer Comchip Technology
Package Reel - TR
Speed Standard Recovery >500ns, > 200mA (Io)
Mounting Surface Mount
Package SOD-123F
Case / Package SOD-123F
Family Name CGRKM4004
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number 641-1512-2, Q8769738, 641-1512-1, 641-1512-6
Quantity per package 2500
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 866381-CGRKM4004-HF
Ultra Librarian 3D Model Ultra Librarian CGRKM4004-HF CAD Model

Description

The Comchip Technology 866381-CGRKM4004-HF is a standard diode with a 400 V reverse voltage rating and 1A forward current rating.

  • Reverse Voltage Rating: 400 V
  • Forward Current Rating: 1A
  • Mounting: Surface Mount
  • Package: SOD-123F
  • Recovery Time: More than 500ns
  • Forward Current: More than 200mA
  • Family Name: CGRKM4004
  • Reel: 2500 units
  • Estimated Production Lead Time: 7 weeks
  • Manufacturer: Comchip Technology
