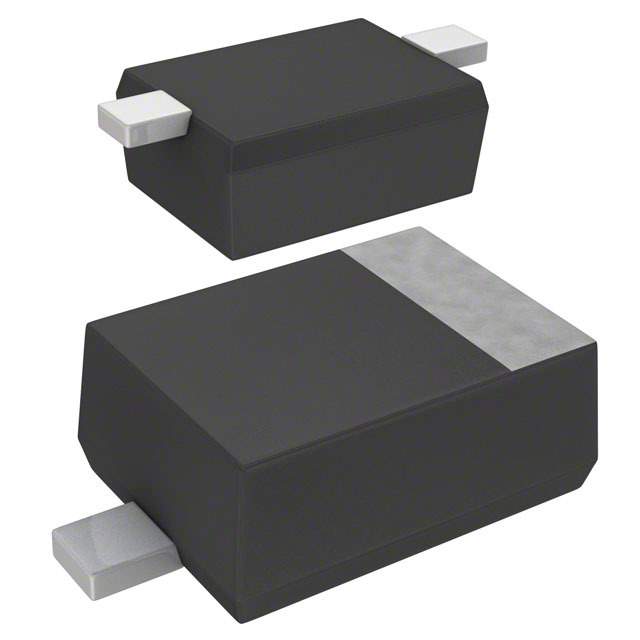

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 30mA (DC)
Voltage - Forward (Vf) (Max) @ If 1V @ 30mA
Reverse Recovery Time (trr) 1ns
Current - Reverse Leakage @ Vr 300nA @ 30V
Capacitance @ Vr, F 1.5pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package SMini2-F5-B
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 013808-DB2J31400L
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian DB2J31400L CAD Model

Description

Product Description

The DB2J31400L is known for its robust performance and is ideal for a wide range of demanding electronic applications. Its optimized design ensures both high performance and reliability.

Applications

  • Portable electronic devices
  • Energy management systems
  • Advanced computing solutions
  • Aerospace and defense applications

Features and Benefits

  • Exceptional versatility across various platforms.
  • High tolerance to environmental stresses.
  • Enhanced lifespan for sustained operation.

Additional Details

The DB2J31400L is an excellent choice for those looking to implement cutting-edge solutions while focusing on long-term reliability and performance.
