Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30 V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 440 mV @ 1 A
Speed Fast Recovery =< 500ns, > 200mA (Io)
Reverse Recovery Time (trr) 10 ns
Current - Reverse Leakage @ Vr 900 µA @ 30 V
Capacitance @ Vr, F 32pF @ 10V, 1MHz
Mounting Surface Mount
Case / Package 0402 (1005 Metric)
Supplier Device Package 0402 (1005 Metric)
Operating Temperature - Junction 150°C (Max)
Base Product Number DB2G326
RoHS Status RoHS Compliant
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8541.10.0080
Other Part Number P18981CT,P18981TR,P18981DKR
Standard Package 1,000
Win Source Part Number 1324306-DB2G32600L1
Ultra Librarian 3D Model Ultra Librarian DB2G32600L1 CAD Model

Description

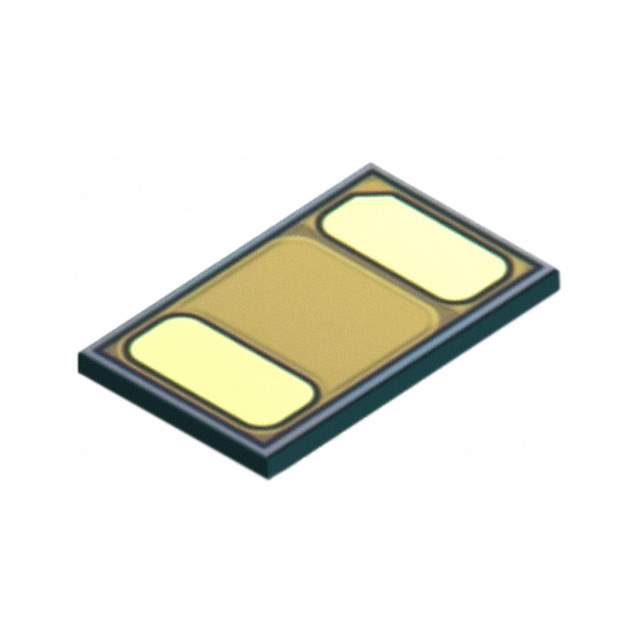

The Panasonic DB2G32600L1 is a Schottky diode that is used for rectifiers - single.

  • Package: Reel - TR
  • Standard Package: 1,000
  • Mounting Type: Surface Mount
  • Speed: Fast Recovery =< 500ns, > 200mA (Io)
  • Voltage - DC Reverse (Vr) (Max): 30V
  • Current - Average Rectified (Io): 1A
  • Voltage - Forward (Vf) (Max) @ If: 440 mV @ 1A
  • Reverse Recovery Time (trr): 10ns
  • Current - Reverse Leakage @ Vr: 900 µA @ 30V
  • Capacitance @ Vr, F: 32pF @ 10V, 1MHz
  • Operating Temperature - Junction: 150°C (Max)
  • Supplier Device Package: 0402 (1005 Metric)
  • MSL Level: 1 (Unlimited)
  • HTSUS: 8541.10.0080
  • Base Product Number: DB2G326
  • Other Part Numbers: P18981CT, P18981TR, P18981DKR
  • RoHS Compliant: Yes
