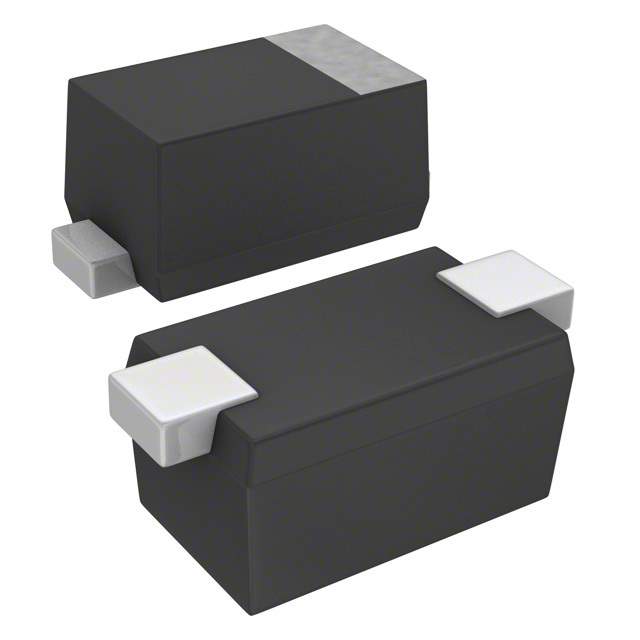

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Panasonic Electronic Components
Packaging Reel - TR
Status Active
Diode Type Schottky
Voltage - DC Reverse (Vr) (Max) 30V
Current - Average Rectified (Io) 1.5A
Voltage - Forward (Vf) (Max) @ If 460mV @ 1.5A
Speed(Frequency) Fast Recovery = 200mA (Io)
Reverse Recovery Time (trr) 16ns
Current - Reverse Leakage @ Vr 100μA @ 30V
Capacitance @ Vr, F 48pF @ 10V, 1MHz
Mounting SMD (SMT)
Case / Package SMINI2-F4-B-B
Operating Temperature - Junction 125°C (Max)
Win Source Part Number 1032656-DB2132000L
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian DB2132000L CAD Model

Description

The Panasonic Electronic Components diode is a Schottky type diode with a maximum DC reverse voltage of 30V and an average rectified current of 1.5A.

  • Type: Schottky Diode
  • Maximum DC Reverse Voltage: 30V
  • Average Rectified Current: 1.5A
  • Forward Voltage: 460mV @ 1.5A
  • Reverse Recovery Time (trr): 16ns
  • Capacitance: 48pF @ 10V, 1MHz
  • Current Reverse Leakage: 100μA @ 30V
  • Temperature Range: Up to 125°C
  • Package: SMINI2-F4-B-B
  • Category: Discrete Semiconductor Products
