C3970BA Bulgin – Price, Stock & Datasheet
Same model may have multiple batches, images only for reference.

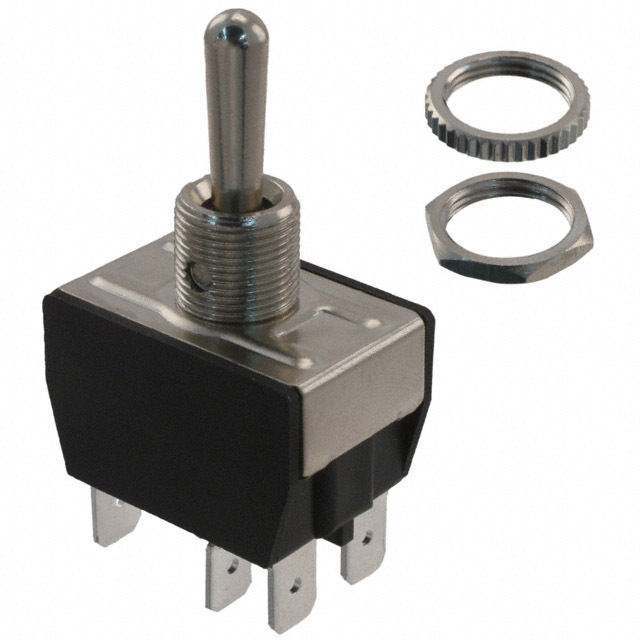

C3970BA

Part No C3970BA
Manufacturer Bulgin
Catalog Toggle Switches
Description Toggle Switch DPDT Panel Mount
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Mfr Bulgin
Series 3900
Packaging Bulk
Mounting Type Panel Mount
Circuit DPDT
Switch Function On-Off-On
Current Rating (Amps) 16A (AC), 14A (DC)
Voltage Rating - AC 125 V
Voltage Rating - DC 36 V
Actuator Type Standard Round
Actuator Length 17.50mm
Illumination Non-Illuminated
Termination Style Quick Connect - 0.250" (6.3mm)
Panel Cutout Dimensions Circular - 12.70mm Dia
Bushing Thread 15/32-32
Base Product Number C3970
RoHS Status ROHS3 Compliant
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.50.9065
Win Source Part Number 1478184-C3970BA
Ultra Librarian 3D Model Ultra Librarian C3970BA CAD Model
