CB1A-P-24V Panasonic
Same model may have multiple batches, images only for reference.

CB1A-P-24V

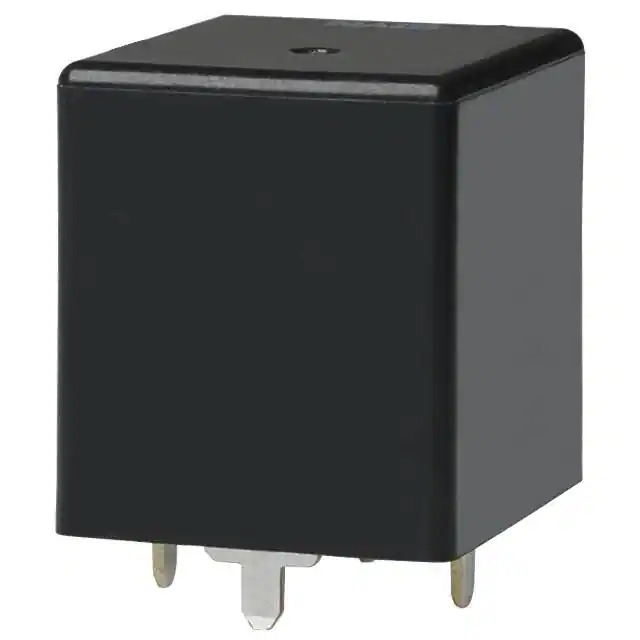

Part No CB1A-P-24V
Manufacturer Panasonic
Catalog Automotive Relays
Description RELAY AUTOMOTIVE SPST 20A 24V
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Relays - Automotive Relays
Mfr Panasonic Electric Works
Series CB
Package Bulk
Product Status Active
Coil Type Non Latching
Coil Current 75 mA
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 20 A
Switching Voltage 28VDC - Nom
Must Operate Voltage 14 VDC
Must Release Voltage 2.4 VDC
Operate Time 15 ms
Release Time 15 ms
Features Sealed - Fully
Mounting Type Through Hole
Termination Style PC Pin
Temperature Range - Operating -40°C ~ 85°C
Contact Material Silver Alloy, Cadmium Free
Coil Power 1.8W
Coil Resistance 320 Ohms
Base Product Number CB1A
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Win Source Part Number 1373471-CB1A-P-24V
Ultra Librarian 3D Model Ultra Librarian CB1A-P-24V CAD Model

Description

The Panasonic Electric Works CB1A-P-24V Automotive Relay is a versatile and reliable component suitable for various automotive applications.

  • Temperature Range: -40°C to 85°C
  • Protection: Sealed, Fully Protected
  • Coil Voltage: 24VDC
  • Contact Rating: 20A
  • Contact Form: SPST-NO (1 Form A)
  • Mounting Type: Through Hole
  • MSL Level: 1 (Unlimited)
  • HTSUS Code: 8536.41.0050
  • ECCN: EAR99
