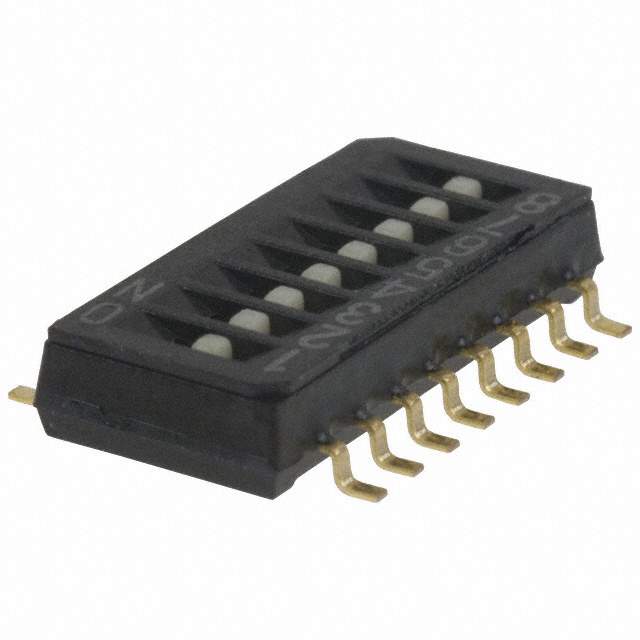

CHS-08TB

Name: CHS-08TB
Brand: Copal Electronics Inc.
SKU: 444019
Availability: InStock
Rating: 4.84 (48 reviews)

Get a Quote

This model is a standard, industry-grade component frequently used in electronic manufacturing.

Part No	CHS-08TB
Manufacturer	Copal Electronics Inc.
Catalog	DIP Switches
Description	Switch Slide OFF ON 8PST Recessed Slide 0.1A 24VDC Gull Wing SMD T/R / SWITCH SLIDE DIP SPST 100MA 6V
Datasheet	CHS-08TB Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Switches
Manufacturer	Copal Electronics Inc.
Packaging	Reel - TR
Status	Active
Circuit	SPST
Number of Positions	8
Current Rating	100mA
Voltage Rating	6VDC
Actuator Type	Slide (Standard)
Actuator Level	Flush, Recessed
Contact Finish	Gold
Height Above Board	0.098" (2.50mm)
Mounting	SMD (SMT)
Termination Style	Gull Wing
Pitch	0.050" (1.27mm), Half
Washable	Yes
Features	Tape Seal
Body Material	Polyphenylene Sulfide (PPS)
Length	0.461" (11.71mm)
Temperature Range - Operating	-40°C to 85°C
Electrical Life	2,000 Cycles
Win Source Part Number	1029223-CHS-08TB
Is this a common-used part?	Yes
Popularity	High
Supply and Demand Status	Limited
Family Name	CHS
Introduction Date	November 07, 2004
ECCN	EAR99
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian CHS-08TB CAD Model

Description

The Copal Electronics Inc. CHS-08TB is a switch with a circuit type of SPST.

Positions: 8
Pitch: 0.050" (1.27mm), Half
Termination Style: Gull Wing
Seal: Tape Seal
Contact Finish: Gold
Voltage Rating: 6VDC
Current Rating: 100mA
Height Above Board: 0.098" (2.50mm)
Length: 0.461" (11.71mm)
Mounting: SMD (SMT)
Body Material: Polyphenylene Sulfide (PPS)
Actuator Type: Slide (Standard)
Electrical Life: 2,000 cycles
Washable: Yes
Temperature Range: -40°C to 85°C
