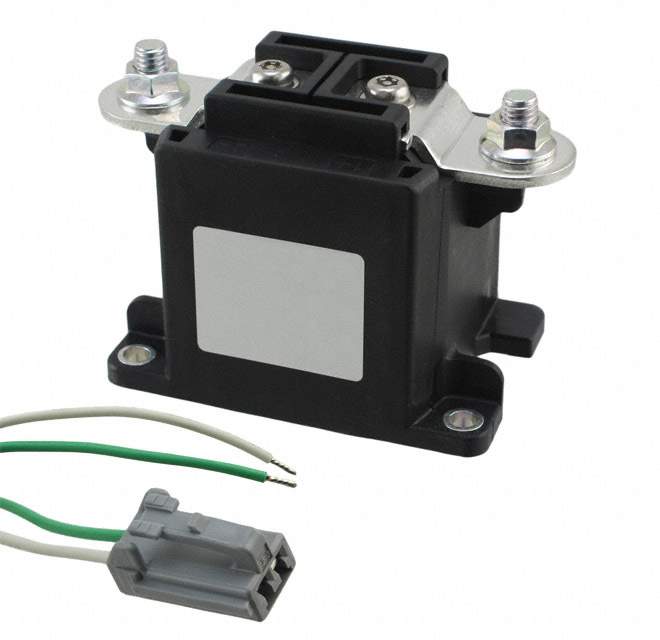

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Category Relays>Automotive Relays
Mfr Panasonic
Series AEV
Package Bulk
Coil Type Non Latching
Coil Current 1.9 A
Coil Voltage 24VDC
Contact Form SPST-NO (1 Form A)
Contact Rating (Current) 300 A
Switching Voltage 450VDC - Nom
Must Operate Voltage 18 VDC
Must Release Voltage 4 VDC
Operate Time 30 ms
Release Time 10 ms
Features -
Mounting Type Chassis Mount
Termination Style Stud
Temperature Range - Operating -40°C ~ 85°C
Contact Material -
Coil Power 3.8W
Moisture Sensitivity Level (MSL) 1 (Unlimited)
ECCN EAR99
HTSUS 8536.41.0050
Standard Package 5 pcs
Win Source Part Number 1381367-AEV19024
Ultra Librarian 3D Model Ultra Librarian AEV19024 CAD Model

Description

The AEV19024 is an automotive relay from the AEV series.

  • Series: AEV
  • Termination Style: Stud
  • Contact Form: SPST-NO (1 Form A)
  • Coil Current: 1.9A
  • Coil Voltage: 24VDC
  • Contact Rating: 300A
  • Switching Voltage: 450VDC
  • Mounting Type: Chassis Mount
