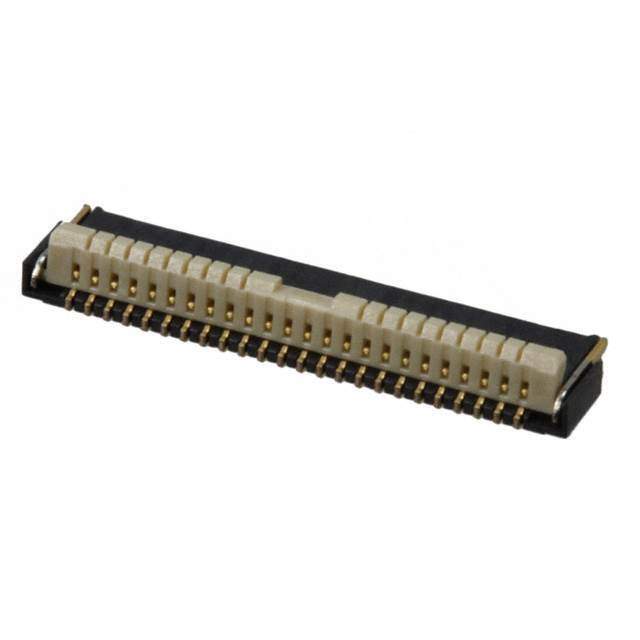

AYF532435

Get a Quote

Part No	AYF532435
Manufacturer	Panasonic
Catalog	FFC, FPC (FlatFlexible) Connectors
Description	CONN FFC FPC 24POS 0.50MM R/A / 24 Position FFC, FPC Connector Contacts, Top and Bottom 0.020" (0.50mm) Surface Mount, Right Angle
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Connectors, Interconnects>FFC, FPC (Flat Flexible) Connectors
Mfr	Panasonic Electric Works
Series	Y5B
Package	Tape & Reel
Flat Flex Type	FFC, FPC
Mounting Type	Surface Mount, Right Angle
Connector/Contact Type	Contacts, Top and Bottom
Number of Positions	24
Pitch	0.020" (0.50mm)
Termination	Solder
FFC, FCB Thickness	0.30mm
Height Above Board	0.039" (1.00mm)
Locking Feature	Flip Lock, Backlock
Cable End Type	Tapered
Contact Material	Copper Alloy
Contact Finish	Gold
Housing Material	Liquid Crystal Polymer (LCP)
Actuator Material	Liquid Crystal Polymer (LCP)
Voltage Rating	50V
Temperature Range - Operating	-55°C ~ 85°C
Material Flammability Rating	UL94 V-0
Current Rating (Amps)	0.5A per Contact
Contact Finish Thickness	Flash
Mating Cycles	20
MSL Level	1 (Unlimited)
ECCN	EAR99
HTSUS	8536.69.4051
Other Names	255-3062-6,255-3062-1,255-3062-2,AYF532435-ND
Standard Package	5,000
Win Source Part Number	1120387-AYF532435
Ultra Librarian 3D Model	Ultra Librarian AYF532435 CAD Model

Alternative Products

Product Part Number	Manufacturer	Package	Country	Similarity	Description

Description

The Panasonic Y5B FFC/FPC connector is a high-quality and reliable component that is widely used in electronic devices and systems.

Positions: 24
Pitch: 0.020" (0.50mm)
Cable Thickness: 0.30mm
Plating: Gold
Housing and Actuator Material: Liquid Crystal Polymer (LCP) UL94 V-0
Mounting: Surface Mount
Packaging: Tape and Reel (5000 pieces)
