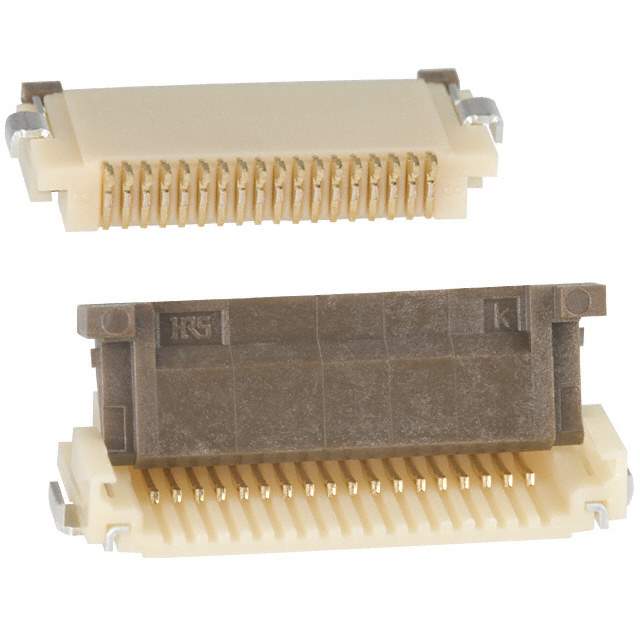

FH12-18S-0.5SH(55) Real Image
Same model may have multiple batches, images only for reference.

FH12-18S-0.5SH(55)

Part No FH12-18S-0.5SH(55)
Manufacturer Hirose Electric Co Ltd
Catalog FFC, FPC (FlatFlexible) Connectors
Description CONN FFC BOTTOM 18POS 0.50MM R/A / Conn FFC/FPC Connector SKT 18 POS 0.5mm Solder RA SMD T/R
Datasheet
FH12-18S-0.5SH(55) Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Hirose Electric Co Ltd
Series FH12
Packaging Reel package
Flat Flex Type FFC, FPC
Mounting Surface Mount, Right Angle
Connector/Contact Type Contacts, Bottom
Number of Positions 18
Pitch 0.020" (0.50mm)
Termination Solder
FFC, FCB Thickness 0.30mm
Height Above Board 0.079" (2.00mm)
Locking Feature Flip Lock
Cable End Type Straight
Contact Material Phosphor Bronze
Contact Finish Gold
Housing Material Polyamide (PA), Nylon
Actuator Material Polyphenylene Sulfide (PPS)
Features Zero Insertion Force (ZIF)
Voltage Rating 50V
Operating Temperature Range -40°C ~ 85°C
Material Flammability Rating UL94 V-0
Current Rating 0.5A
Housing Color Beige
Actuator Color Brown
Mating Cycles 20
Win Source Part Number 774548-FH12-18S-0.5SH(55)
Popularity Medium
Supply and Demand Status Limited
Family Name FH12
Introduction Date September 30, 1998
ECCN EAR99
Country of Origin Japan
Halogen Free Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian FH12-18S-0.5SH(55) CAD Model

Description

The Hirose Electric Co Ltd FH12-18S-0.5SH(55) is a surface mount, right angle connector with 18 positions and a pitch of 0.020" (0.50mm).

  • Positions: 18
  • Pitch: 0.020" (0.50mm)
  • Mounting Type: Surface Mount, Right Angle
  • Locking Feature: Zero Insertion Force (ZIF), Flip Lock
  • Cable End Type: Straight
  • FFC/FPC Compatibility: FFC, FPC
  • FFC/FPC Thickness: 0.30mm
  • Connector/Contact Type: Contacts, Bottom
  • Operating Temperature: -40°C to 85°C
  • Housing Material: Polyamide (PA), Nylon
  • Actuator Material: Polyphenylene Sulfide (PPS)
  • Material Flammability Rating: UL94 V-0
  • Housing Color: Beige
  • Package: Reel
  • Mating Cycles: 20
  • Alternative Parts: XF2M-1815-1A, XF2M18151AR100GF056-18S-LSS-AF-P2000, GF056-18S-LSS-AF-E2000
  • Introduction Date: September 30, 1998
  • Estimated EOL Date: 2027
  • ECCN: EAR99
  • Country of Origin: Japan
