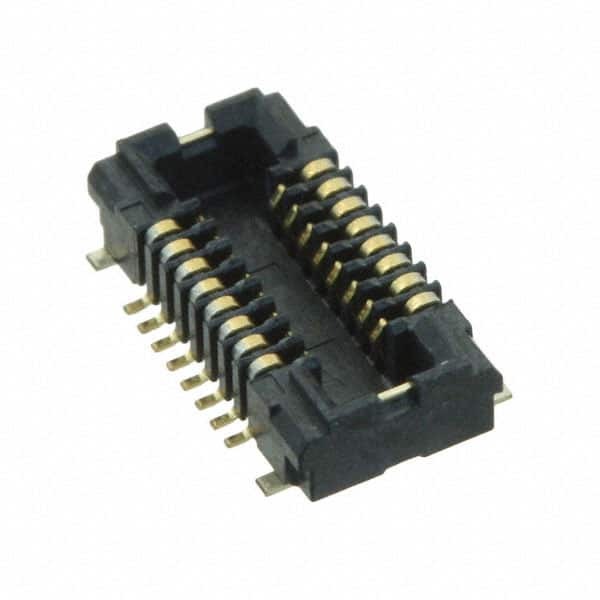

AXT316164
Same model may have multiple batches, images only for reference.

AXT316164

Part No AXT316164
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET 16POS SMD GOLD / 16 Position Connector Socket, Outer Shroud Contacts Surface Mount Gold
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Arrays, Edge Type, Mezzanine (Board to Board)
Mfr Panasonic
Series P4S
Package Tape & Reel
Product Status Obsolete
Connector Type Socket, Outer Shroud Contacts
Number of Positions 16
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting Type Surface Mount
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 1.5mm
Height Above Board 0.057" (1.45mm)
Base Product Number AXT316
Standard Package 5,000 pcs
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 862795-AXT316164
Ultra Librarian 3D Model Ultra Librarian AXT316164 CAD Model

Description

The AXT316164 rectangular connector array from Panasonic is a reliable and high-quality electronic component designed for board-to-board connections.

  • Positions: 16
  • Pitch: 0.016" (0.40mm)
  • Feature: Solder retention
  • Contact Finish: Gold
  • Height Above Board: 0.057" (1.45mm)
  • Mated Stacking Height: 1.5mm
  • Mounting: Surface mountable
  • Package: Tape & reel
  • Package Quantity: 5,000 pcs
  • Product Status: Obsolete
