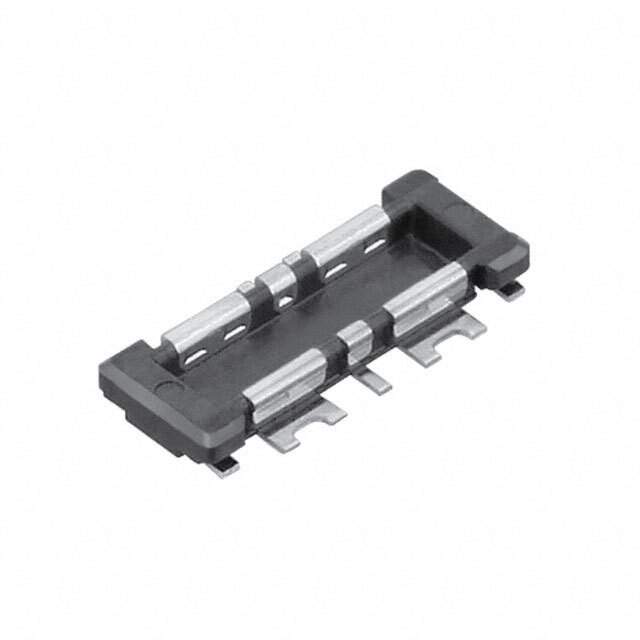

AXF461500A Real Image
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Cut Strip
Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 6
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Contact Finish Thickness 3.9μin (0.10μm)
Mated Stacking Heights 0.6mm
Height Above Board 0.018" (0.47mm)
Win Source Part Number 1020959-AXF461500A
Popularity Medium
Supply and Demand Status Balance
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian AXF461500A CAD Model

Description

The AXF461500A is a header connector with outer shroud contacts manufactured by Panasonic Electric Works. Panasonic Electric Works is the manufacturer.

  • Positions: 6
  • Features: solder retention
  • Contact Finish: Gold
  • Contact Finish Thickness: 3.9μin (0.10μm)
  • Mated Stacking Heights: 0.6mm
  • Height Above Board: 0.018" (0.47mm)
  • Mounting: Surface Mounted (SMD)
  • Popularity: Medium
  • Package: 500
