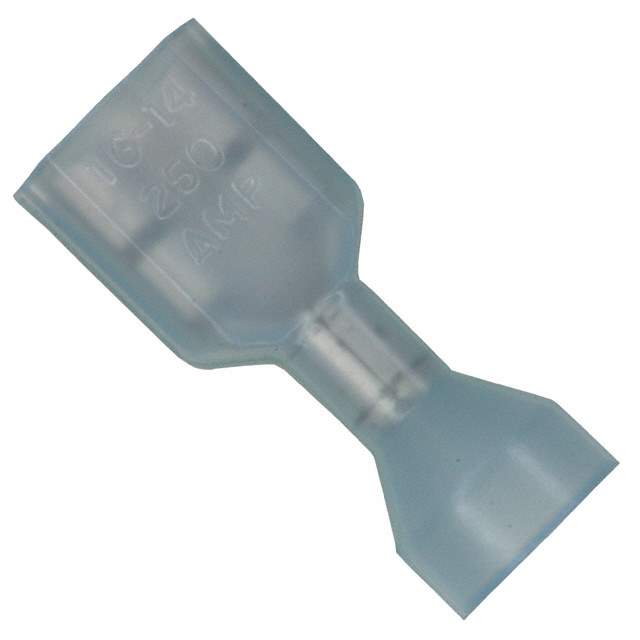

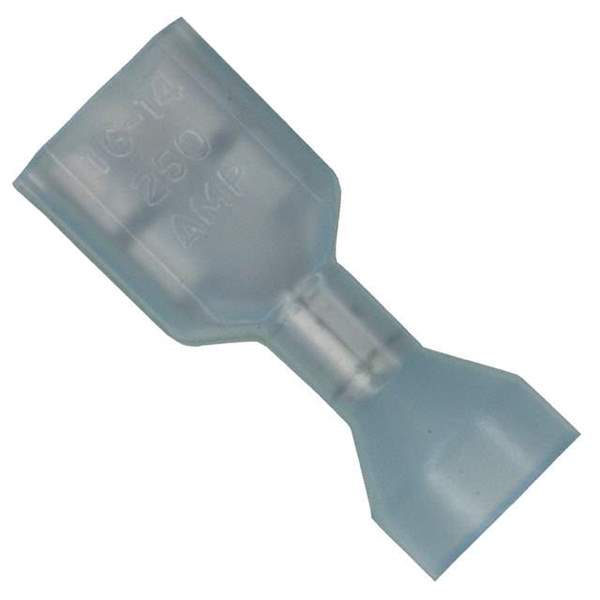

3-520140-2 Real Image
Same model may have multiple batches, images only for reference.

3-520140-2

Part No 3-520140-2
Manufacturer TE Connectivity
Catalog Terminals
Description CONN QC RCPT 14-16AWG 0.250
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors
Estimated Pruduction Lead Time 33 Weeks
Features 0.250" (6.35mm) Quick Connect Female 14-16 AWG Crimp Connector Fully Insulated
Manufacturer TE Connectivity
Series Ultra-Fast
Package Reel - TR
Mounting Free Hanging (In-Line)
Family Name 520140
MSL Level 1 (Unlimited)
REACH Status Vendor Undefined
ECCN EAR99
HTSUS 8536.90.4000
Other Part Number A27827, A27828CT, -3-520140-2-CSI, -3-520140-2-SI, 35201402, A27827-ND, 3-520140-2-ND, A27828TR
Quantity per package 2000
Popularity Medium
Supply and Demand Status Limited
Win Source Part Number 844415-3-520140-2
Ultra Librarian 3D Model Ultra Librarian 3-520140-2 CAD Model

Description

The 844415-3-520140-2 connector is an ultra-fast connector manufactured by TE Connectivity.

  • Design: Fully Insulated
  • Connector Type: 0.250" (6.35mm) Quick Connect Female 14-16 AWG Crimp Connector
