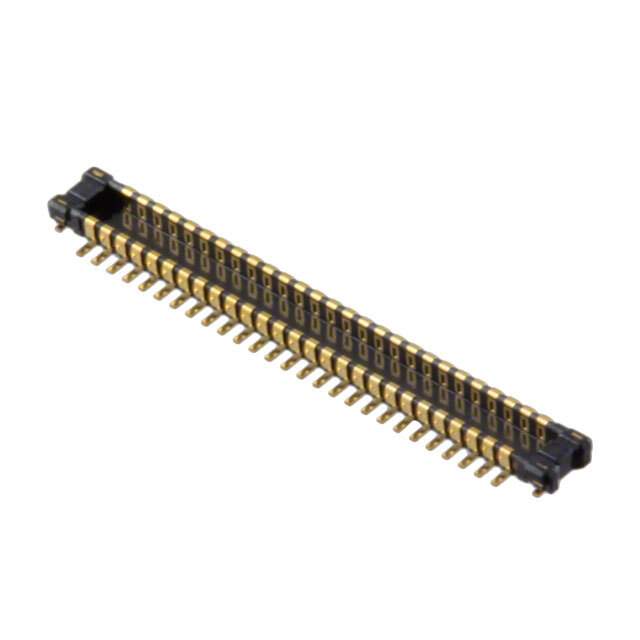

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 54
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm
Height Above Board 0.026" (0.65mm)
Win Source Part Number 1020947-AXE654124
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian AXE654124 CAD Model

Description

The Panasonic Electric Works Header Connector is a two-row connector that has 54 positions.

  • Rows: Two
  • Positions: 54
  • Pitch: 0.016 inches
  • Contact Finish: Gold
  • Mated Stacking Heights: 0.8mm
  • Height Above Board: 0.026 inches
  • Features: Solder Retention, Outer Shroud Contacts
  • Connector Type: Header
  • Mounting Technology: Surface-Mount Technology (SMT)
  • Applications: Interconnects and Connectors
