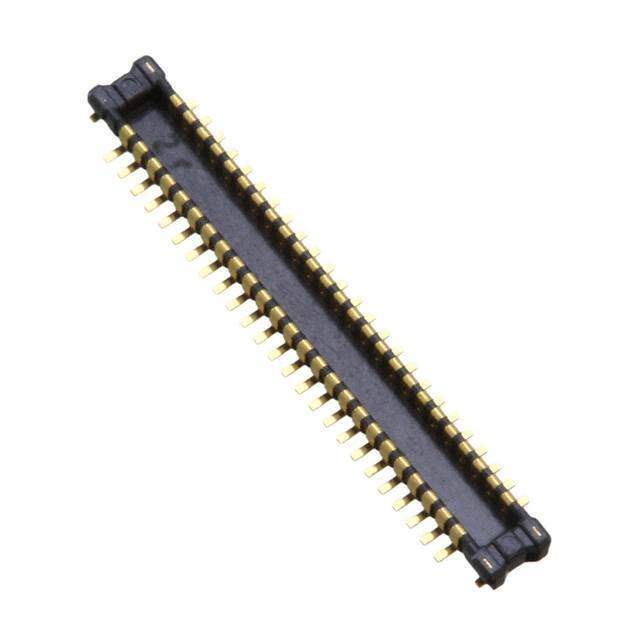

Product photo
Same model may have multiple batches, images only for reference.

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 50
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm, 1mm
Height Above Board 0.026" (0.65mm)
Win Source Part Number 1020945-AXE650124A
Popularity Medium
Supply and Demand Status Balance
Quantity per package 500
Ultra Librarian 3D Model Ultra Librarian AXE650124A CAD Model

Description

It is a balanced supply and demand product with a manufacturer of Panasonic Electric Works.

  • Packaging: Reel - TR
  • Positions: 50
  • Pitch: 0.016" (0.40mm)
  • Features: Solder Retention
  • Connector Type: Header, Outer Shroud Contacts
  • Rows: 2
  • Contact Finish: Gold
  • Mated Stacking Height: 0.8mm, 1mm
  • Height Above Board: 0.026" (0.65mm)
  • Category: Connectors, Interconnects
  • Status: active
  • Quantity per Package: 500
