Same model may have multiple batches, images only for reference.

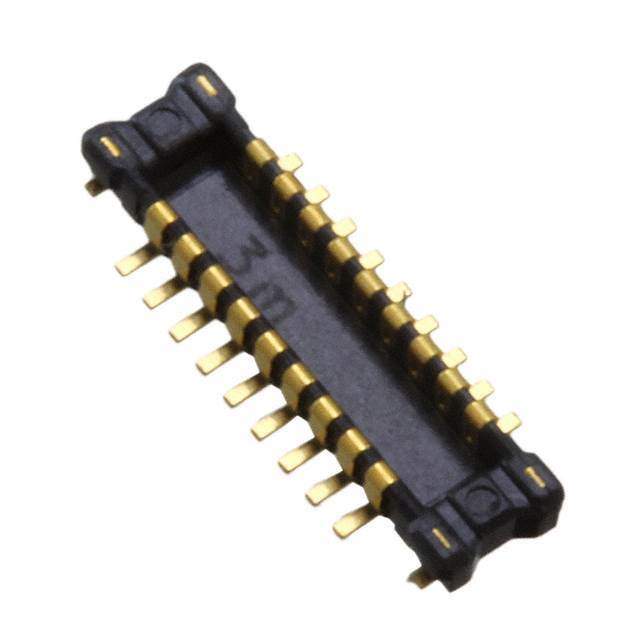

AXE618124 Real Image
Same model may have multiple batches, images only for reference.

AXE618124

Part No AXE618124
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN HEADER .4MM 18 POS SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Connectors, Interconnects
Manufacturer Panasonic Electric Works
Packaging Reel - TR
Status Active
Connector Type Header, Outer Shroud Contacts
Number of Positions 18
Pitch 0.016" (0.40mm)
Number of Rows 2
Mounting SMD (SMT)
Features Solder Retention
Contact Finish Gold
Mated Stacking Heights 0.8mm
Height Above Board 0.026" (0.65mm)
Win Source Part Number 1020933-AXE618124
Popularity Medium
Supply and Demand Status Sufficient
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian AXE618124 CAD Model

Description

The Panasonic Electric Works AXE618124 is a header connector with outer shroud contacts.

  • Manufacturer: Panasonic Electric Works
  • Product Name: AXE618124
  • Number of Positions: 18
  • Pitch: 0.016" (0.40mm)
  • Solder Retention: Yes
  • Contact Finish: gold
  • Contact Finish Thickness: not specified
  • Mounting: SMD
  • Mated Stacking Height: 0.8mm
  • Height Above Board: 0.026" (0.65mm)
  • Category: connectors and interconnects
  • Status: active
  • Package Quantity: 5k pcs
