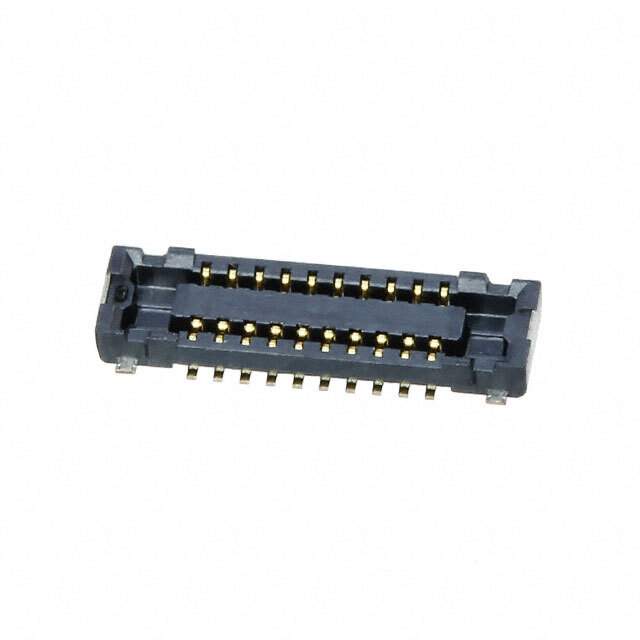

AXE120224 Real Image
Same model may have multiple batches, images only for reference.

AXE120224

Part No AXE120224
Manufacturer Panasonic
Catalog Rectangular Connectors
Description CONN SOCKET 20POS SMD GOLD
Datasheet
AXE120224 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number 30000085-AXE120224
Manufacturer Panasonic Electric Works
Category Connectors, Interconnects -Rectangular Connectors -Arrays, Edge Type, Mezzanine (Board to Board)
Series A4US
Package Tape & Reel (TR)
Pitch 0.016" (0.40mm)
Features Solder Retention
Mounting Type Surface Mount
Base Product Number AXE120
Ultra Librarian 3D Model Ultra Librarian AXE120224 CAD Model

Description

The Panasonic Electric Works AXE120 is a connector, interconnects -rectangular connectors -arrays, edge type, mezzanine (board to board) that has a pitch of 0.016" (0.40mm) and features solder retention.

  • Pitch: 0.016" (0.40mm)
  • Features: Solder Retention
  • Mounting Type: Surface Mount
  • Packaging: Tape & Reel (TR)
  • Base Product Number: A4US
